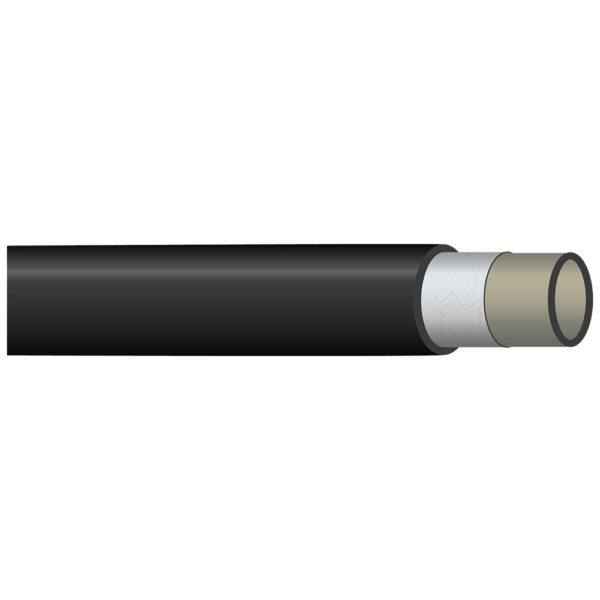

R7-12 by Kurt Hydraulics | R7 Series | 0.75in ID x 1.1in ID | 1250 MAWP | Thermoplastic Hydraulic Hose with Polyester Tube and Polyurethane Cover | SAE 100R7 | Black | 250ft Reel
by Kurt Hydraulics
Kurt Fittings and Hose should only be used together.
Package Quantity: 250 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,422.78 |
| 8–14 | $1,362.24 |
| 15+ | $1,210.88 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
1250
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Recommended for: Medium pressure hydraulic oil lines
Tube: Thermoplastic
Reinforcement: Synthetic fiber
Cover: Abrasion, ozone and weather resistant black urethane
Temperature Range: -40°F to +212°F
| Part Number | Hose I.D. (in.) | Hose O.D. (in.) | Rated W.P. (psi) | Min. Burst (psi) | Min. Bend (in.) |
|---|---|---|---|---|---|
| R7-02 | 1/8 | 0.31 | 3,000 | 12,000 | 1.0 |
| R7-03 | 3/16 | 0.41 | 3,000 | 12,000 | 2.0 |
| R7-04 | 1/4 | 0.49 | 3,000 | 12,000 | 2.5 |
| R7-05 | 5/16 | 0.59 | 2,500 | 10,000 | 3.0 |
| R7-06 | 3/8 | 0.68 | 2,250 | 9,000 | 4.0 |
| R7-08 | 1/2 | 0.81 | 2,000 | 8,000 | 5.5 |
| R7-12 | 3/4 | 1.06 | 1,250 | 5,000 | 7.0 |
| R7-16 | 1 | 1.38 | 1,000 | 4,000 | 12.0 |
