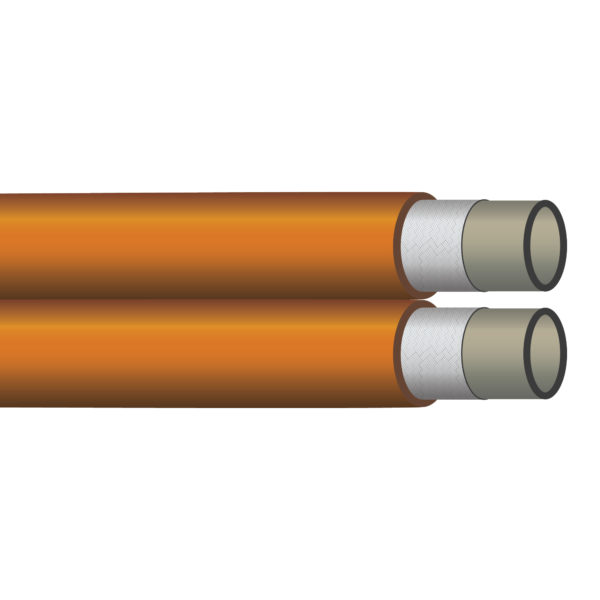

R7-05-TW-NC by Kurt Hydraulics | R7-NC Series | 0.3125in ID x 0.585in ID | 2500 MAWP | Non-Conductive Thermoplastic Hydraulic Hose with Polyester Tube and Polyurethane Cover | SAE 100R7 | Orange | 250ft Reel
by Kurt Hydraulics
Kurt Fittings and Hose should only be used together.
Package Quantity: 250 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,380.36 |
| 8–14 | $1,321.62 |
| 15+ | $1,174.78 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
2500
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Recommended for: Medium pressure hydraulic oil lines for non-conductive twin-line applications
Tube: Thermoplastic
Reinforcement: Synthetic fiber
Cover: Abrasion, ozone and weather resistant orange urethane
Temperature Range: -40°F to +212°F
| Part Number | Hose I.D. (in.) | Hose O.D. (in.) | Rated W.P. (psi) | Min. Burst (psi) | Min. Bend (in.) |
|---|---|---|---|---|---|
| R7-04-TW-NC | 1/4 | 0.49 | 3,000 | 12,000 | 2.5 |
| R7-05-TW-NC | 5/16 | 0.59 | 2,500 | 10,000 | 3.0 |
| R7-06-TW-NC | 3/8 | 0.65 | 2,250 | 9,000 | 3.5 |
| R7-08-TW-NC | 1/2 | 0.81 | 2,000 | 8,000 | 5.5 |
