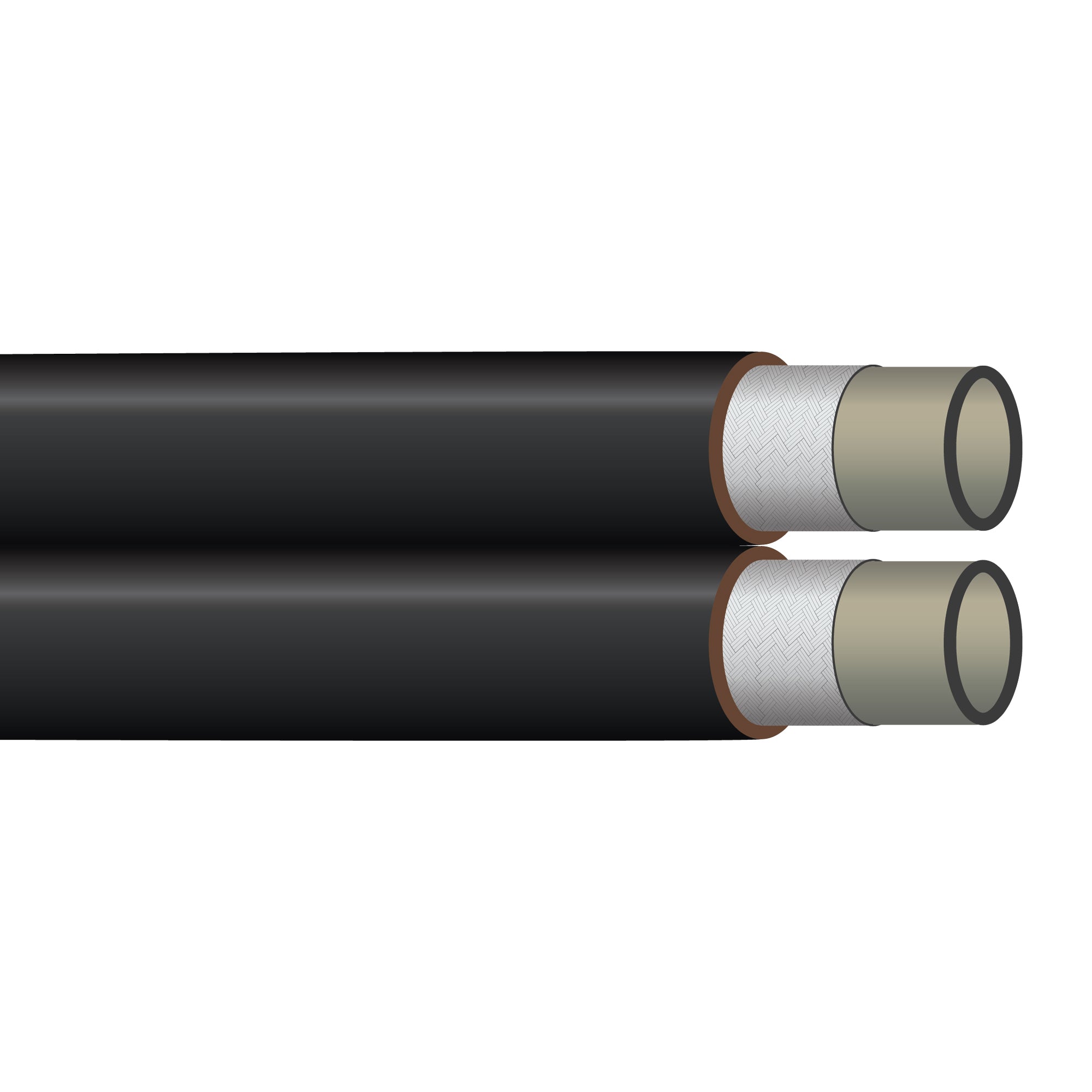

R7-05-TW by Kurt Hydraulics | R7 Series | 0.3125in ID x 0.585in ID | 2500 MAWP | Thermoplastic Hydraulic Hose with Polyester Tube and Polyurethane Cover | SAE 100R7 | Black | 250ft Reel

R7-05-TW by Kurt Hydraulics | R7 Series | 0.3125in ID x 0.585in ID | 2500 MAWP | Thermoplastic Hydraulic Hose with Polyester Tube and Polyurethane Cover | SAE 100R7 | Black | 250ft Reel

Sale price$1,445.88

by Kurt Hydraulics

Kurt Fittings and Hose should only be used together.

Package Quantity: 250 Feet

Buy More, Save More!
Quantity Price Each
4–7 $1,359.13
8–14 $1,301.29
15+ $1,156.70
Discounts applied in cart/checkout.

Product Data:

Series:
  • R7 Series
Color(s):
  • Black
Dash Size:
  • -05

Recommended for: Medium pressure hydraulic oil lines twin-line applications
Tube: Thermoplastic
Reinforcement: Synthetic fiber
Cover: Abrasion, ozone and weather resistant black urethane
Temperature Range: -40°F to +212°F

Part Number Hose I.D. (in.) Hose O.D. (in.) Rated W.P. (psi) Min. Burst (psi) Min. Bend (in.)
R7-03-TW 3/16 0.41 3,000 12,000 2.0
R7-04-TW 1/4 0.49 3,000 12,000 2.5
R7-05-TW 5/16 0.59 2,500 10,000 3.0
R7-06-TW 3/8 0.65 2,250 9,000 3.5
R7-08-TW 1/2 0.81 2,000 8,000 5.5

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
