R532-6X6 by Couplamatic | R5 Series Coupling | 5/16" Hose ID x 11/16x16 Thread Size O-Ring Face Seal | ORF Female Swivel | 90° Elbow | Trivalent Zinc Plating | Pack of 10
Package Quantity: 10 EA
Buy more, save moreDiscounts applied in cart/checkout.
R5 Series — Textile Cover Hose
R532 R5 Series — O-Ring Face Seal (ORF), Female Swivel, 90° Elbow
R532 is the O-Ring Face Seal (ORF), Female Swivel, 90° Elbow configuration of the R5 Series, terminating SAE 100R5 textile cover hose, including HTR5 high temperature R5.
1
What are the main product features?
- The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
- Trivalent Zinc Plating
- Built for textile cover hose — sized to 100R5 and HTR5 hose dimensions.
- Minimum order quantities apply — 10 pieces for 3/16"–5/8", 5 pieces for 7/8" and 1-1/8".
2
Which sizes are available?

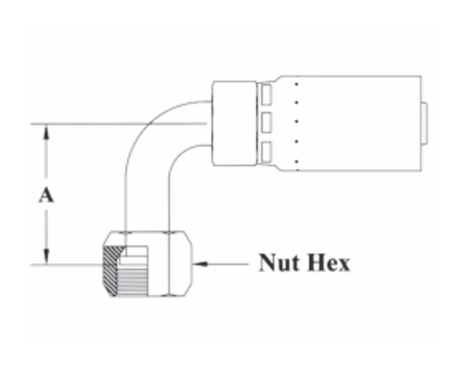

| Part Number | Hose ID | Thread Size | Tube OD | A-DropInches | Nut Hex |
|---|---|---|---|---|---|
| R532-4X4 | 3/16" | 9/16x18 | 1/4" | .78" | 11/16" |
| R532-6X6 | 5/16" | 11/16x16 | 3/8" | .90" | 13/16" |
| R532-8X8 | 13/32" | 13/16x16 | 1/2" | 1.15" | 15/16" |
| R532-12X12 | 5/8" | 1-3/16x12 | 3/4" | 1.88" | 1-3/8" |
Additional Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
