R531-6X6 by Couplamatic | R5 Series Coupling | 5/16" Hose ID x 11/16x16 Thread Size O-Ring Face Seal | ORF Female Swivel | 45° Elbow | Trivalent Zinc Plating | Pack of 10

R531-6X6 by Couplamatic | R5 Series Coupling | 5/16" Hose ID x 11/16x16 Thread Size O-Ring Face Seal | ORF Female Swivel | 45° Elbow | Trivalent Zinc Plating | Pack of 10

Sale price$103.65

Couplamatic Systems Inc.
R5 Series - O-Ring Face Seal (ORF) - 45° Female Swivel

Package Quantity: 10 EA

Buy More, Save More!
Quantity Price Each
5–19 $97.43
20–59 $88.10
60+ $77.74
Discounts applied in cart/checkout.

Product Data:

Series:
  • R5 Series
Shape:

45 Degree

Ends Configuration:
  • 3/8in Female O-Ring Face Seal
  • 5/16in Hose Barb
Description:
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

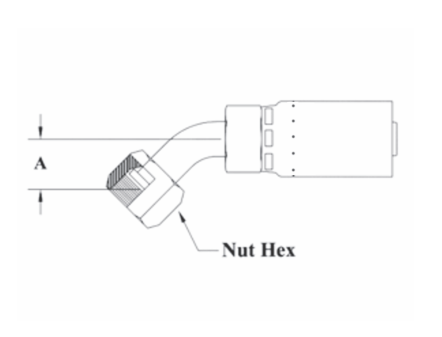

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex
R531-4X4 3/16" 9/16x18 1/4" .41" 11/16"
R531-6X6 5/16" 11/16x16 3/8" .43" 13/16"
R531-8X8 13/32" 13/16x16 1/2" .60" 15/16"

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
