R531-4X4 by Couplamatic | R5 Series Coupling | 3/16" Hose ID x 9/16x18 Thread Size O-Ring Face Seal | ORF Female Swivel | 45° Elbow | Trivalent Zinc Plating | Pack of 10

R531-4X4 by Couplamatic | R5 Series Coupling | 3/16" Hose ID x 9/16x18 Thread Size O-Ring Face Seal | ORF Female Swivel | 45° Elbow | Trivalent Zinc Plating | Pack of 10

Sale price$96.98

Package Quantity: 10 EA

Buy more, save moreDiscounts applied in cart/checkout.
R5 Series — Textile Cover Hose

R531 R5 Series — O-Ring Face Seal (ORF), Female Swivel, 45° Elbow

R531 is the O-Ring Face Seal (ORF), Female Swivel, 45° Elbow configuration of the R5 Series, terminating SAE 100R5 textile cover hose, including HTR5 high temperature R5.

1

What are the main product features?
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating
  • Built for textile cover hose — sized to 100R5 and HTR5 hose dimensions.
  • Minimum order quantities apply — 10 pieces for 3/16"–5/8", 5 pieces for 7/8" and 1-1/8".
2

Which sizes are available?

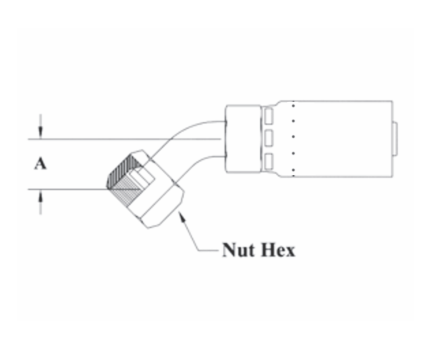

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex
R531-4X4 3/16" 9/16x18 1/4" .41" 11/16"
R531-6X6 5/16" 11/16x16 3/8" .43" 13/16"
R531-8X8 13/32" 13/16x16 1/2" .60" 15/16"

Additional Product Data:

Series:
  • R5 Series
Shape:

45 Degree

Ends Configuration:
  • 1/4in Female O-Ring Face Seal
  • 3/16in Hose Barb

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
