R530-12X12 by Couplamatic | R5 Series Coupling | 5/8" Hose ID x 1-3/16x12 Thread Size O-Ring Face Seal | ORF Female Swivel | Straight | Trivalent Zinc Plating | Pack of 10
Package Quantity: 10 EA
Buy more, save moreDiscounts applied in cart/checkout.
R5 Series — Textile Cover Hose
R530 R5 Series — O-Ring Face Seal (ORF), Female Swivel, Straight
R530 is the O-Ring Face Seal (ORF), Female Swivel, Straight configuration of the R5 Series, terminating SAE 100R5 textile cover hose, including HTR5 high temperature R5.
1
What are the main product features?
- The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
- Trivalent Zinc Plating
- Built for textile cover hose — sized to 100R5 and HTR5 hose dimensions.
- Minimum order quantities apply — 10 pieces for 3/16"–5/8", 5 pieces for 7/8" and 1-1/8".
2
Which sizes are available?

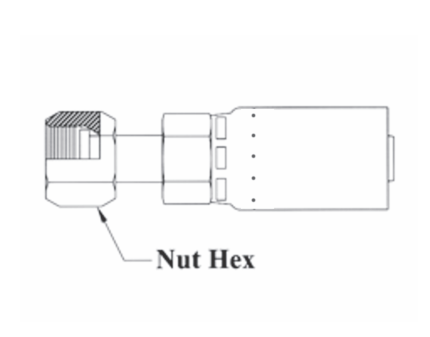

| Part Number | Hose ID | Thread Size | Tube OD | Nut Hex |
|---|---|---|---|---|
| R530-4X4 | 3/16" | 9/16x18 | 1/4" | 11/16" |
| R530-6X6 | 5/16" | 11/16x16 | 3/8" | 13/16" |
| R530-8X8 | 13/32" | 13/16x16 | 1/2" | 15/16" |
| R530-12X12 | 5/8" | 1-3/16x12 | 3/4" | 1-3/8" |
Additional Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
