R526-16X16 by Couplamatic | R5 Series Coupling | 7/8" Hose ID x 1-5/16x12 Thread Size JIC Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating | Pack of 5
Package Quantity: 5 EA
Buy more, save moreDiscounts applied in cart/checkout.
R5 Series — Textile Cover Hose
R526 R5 Series — JIC, Female Swivel, 90° Elbow
R526 is the JIC, Female Swivel, 90° Elbow configuration of the R5 Series, terminating SAE 100R5 textile cover hose, including HTR5 high temperature R5.
1
What are the main product features?
- The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
- Trivalent Zinc Plating
- Built for textile cover hose — sized to 100R5 and HTR5 hose dimensions.
- Minimum order quantities apply — 10 pieces for 3/16"–5/8", 5 pieces for 7/8" and 1-1/8".
2
Which sizes are available?

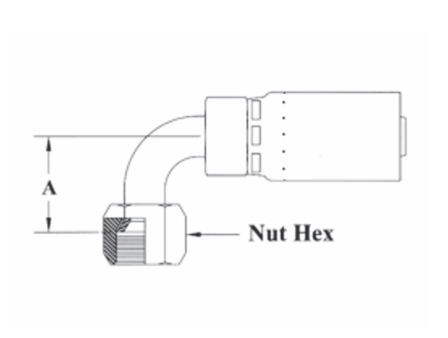

| Part Number | Hose ID | Tube Size | Thread Size | A-Drop Inches | Nut Hex | Cross Reference Part Numbers |
|---|---|---|---|---|---|---|
| Weatherhead 069E | ||||||
| R526-4X4 | 3/16" | 1/4" | 7/16x20 | 0.81" | 9/16" | 06904E-664 |
| R526-5X5 | 1/4" | 5/16" | 1/2x20 | 0.83" | 5/8" | 06905E-665 |
| R526-6X6* | 5/16" | 3/8" | 9/16x18 | 0.91" | 11/16" | 06906E-666 |
| R526-8X8 | 13/32" | 1/2" | 3/4x16 | 1.15" | 7/8" | 06908E-668 |
| R526-10X10 | 1/2" | 5/8" | 7/8x14 | 1.23" | 1" | 06910E-670 |
| R526-12X12* | 5/8" | 3/4" | 1-1/16x12 | 1.88" | 1-1/4" | 06912E-672 |
| R526-16X16* | 7/8" | 1" | 1-5/16x12 | 2.20" | 1-1/2" | 06916E-676 |
| R526-20X20 | 1-1/8" | 1-1/4" | 1-5/8x12 | 3.25" | 2" | 06920E-677 |
JIC Seat & Thread Only The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
Additional Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
