R518-5x5 by Couplamatic | R5 Series Coupling | 1/4" Hose ID x 1/2x20 Thread Size Inverted Male | Straight | Trivalent Zinc Plating | Pack of 10

R518-5x5 by Couplamatic | R5 Series Coupling | 1/4" Hose ID x 1/2x20 Thread Size Inverted Male | Straight | Trivalent Zinc Plating | Pack of 10

Sale price$85.66

Couplamatic Systems Inc.
R5 Series - Inverted Male - Straight

Package Quantity: 10 EA

Buy More, Save More!
Quantity Price Each
5–19 $80.52
20–59 $72.81
60+ $64.25
Discounts applied in cart/checkout.

Product Data:

Series:
  • R5 Series
Shape:

Straight

Ends Configuration:
  • 5/16in Male Inverted Flare
  • 1/4in Hose Barb
Description:
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

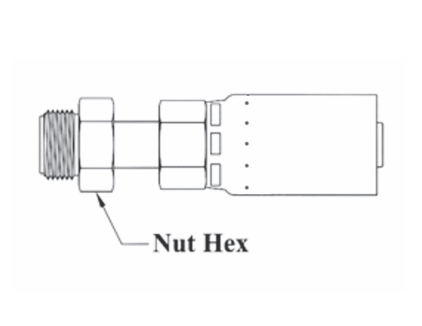

Part Number Hose ID Thread Size Tube OD Nut Hex
R518-4x4 3/16" 7/16x24" 1/4" 7/16"
R518-5x5 1/4" 1/2x20" 5/16" 1/2"
R518-6x6 5/16" 5/8x18" 3/8" 5/8"
R518-8x8 13/32" 3/4x18" 1/2" 3/4"

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
