R518-4x4 by Couplamatic | R5 Series Coupling | 3/16" Hose ID x 7/16x24 Thread Size Inverted Male | Straight | Trivalent Zinc Plating | Pack of 10

R518-4x4 by Couplamatic | R5 Series Coupling | 3/16" Hose ID x 7/16x24 Thread Size Inverted Male | Straight | Trivalent Zinc Plating | Pack of 10

Sale price$77.73

Package Quantity: 10 EA

Buy more, save moreDiscounts applied in cart/checkout.
R5 Series — Textile Cover Hose

R518 R5 Series — Straight

R518 is the Straight configuration of the R5 Series, terminating SAE 100R5 textile cover hose, including HTR5 high temperature R5.

1

What are the main product features?
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating
  • Built for textile cover hose — sized to 100R5 and HTR5 hose dimensions.
  • Minimum order quantities apply — 10 pieces for 3/16"–5/8", 5 pieces for 7/8" and 1-1/8".
2

Which sizes are available?

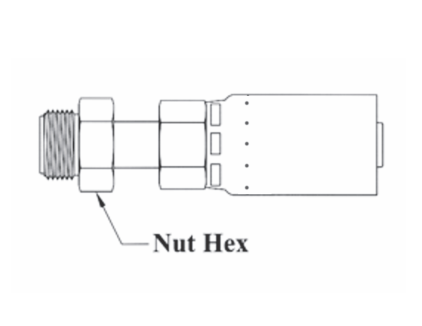

Part Number Hose ID Thread Size Tube OD Nut Hex
R518-4x4 3/16" 7/16x24" 1/4" 7/16"
R518-5x5 1/4" 1/2x20" 5/16" 1/2"
R518-6x6 5/16" 5/8x18" 3/8" 5/8"
R518-8x8 13/32" 3/4x18" 1/2" 3/4"

Additional Product Data:

Series:
  • R5 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Male Inverted Flare
  • 3/16in Hose Barb
