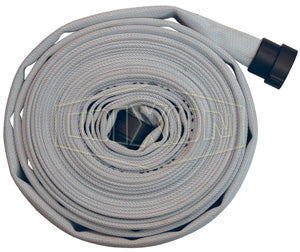

R515U50RAF Dixon 500# All Polyester Rack Hose (UL Labeled) - Coiled - Coupled - Female x Male NST(NH) Rocker Lug Expansion Ring Couplings (Aluminum) - 1-1/2" Hose Size - 50ft Length

R515U50RAF Dixon 500# All Polyester Rack Hose (UL Labeled) - Coiled - Coupled - Female x Male NST(NH) Rocker Lug Expansion Ring Couplings (Aluminum) - 1-1/2" Hose Size - 50ft Length

Sale price$233.64

Dixon Fire Fittings
Fire Hose - 500# All Polyester Rack Hose - UL Labeled - Coupled

For pin rack service / emergency fire fighting only, not to be used for washdown
Buy More, Save More!
Quantity Price Each
5–19 $219.62
20–59 $198.59
60+ $175.23
Discounts applied in cart/checkout.

Product Data:

Series:
  • Fire Hose
Color(s):
  • White/Off-White
Internal Diameter:
  • 1.50in
Features:
  • Outer construction: single jacket, all polyester.
  • Tube construction: clear thermoplastic.
  • Proof pressure: 300 PSI at ambient temperature 70°F (21°C).
  • Service test pressure: 150 PSI at ambient temperature 70°F (21°C).
  • Working pressure: 135 PSI at ambient temperature 70°F (21°C).
  • Underwriters Listed
Folded Hose
Part Number		 Coiled Hose
Part Number		 Hose Size Coupling Type Length Folded Hose
Weight
(Lbs.)		 Coiled Hose
Weight
(Lbs.)
R515U100CBF/F R515U100CBF 1-1/2" Combo Lug, Brass NST (NH) 100 ft 14.5500 10.5000
R515U50RAF/F R515U50RAF 1-1/2" Combo Lug, Aluminum NST (NH) 50 ft 6.2000 -

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
