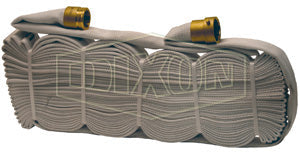

R515-50CBF/F Dixon 500# All Polyester Rack Hose (Non-UL Labeled) - Folded - Coupled - Female x Male NST(NH) Combo Lug Expansion Ring Couplings (Brass) - 1-1/2" Hose Size - 50ft Length
Dixon

R515-50CBF/F Dixon 500# All Polyester Rack Hose (Non-UL Labeled) - Folded - Coupled - Female x Male NST(NH) Combo Lug Expansion Ring Couplings (Brass) - 1-1/2" Hose Size - 50ft Length

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Outer construction: single jacket, all polyester.
  • Tube construction: clear thermoplastic.
  • Proof pressure: 500 PSI at ambient temperature 70°F (21°C)
  • Service test pressure: 250 PSI at ambient temperature 70°F (21°C)
  • Working pressure: 225 PSI at ambient temperature 70°F (21°C)
Folded Hose
Part Number		 Coiled Hose
Part Number		 Hose Size Coupling Type Length Folded Hose
Weight
(Lbs.)		 Coiled Hose
Weight
(Lbs.)
R515-50CBF/F R515-50CBF 1-1/2" Combo Lug, Brass NST (NH) 50 ft 6.8000 17.0000
R515100CBF/F R515100CBF 1-1/2" Combo Lug, Brass NST (NH) 100 ft 13.4400 13.5000
R515-50RAF/F R515-50RAF 1-1/2" Combo Lug, Aluminum NST (NH) 50 ft 6.5800 14.5000
R515100RAF/F R515100RAF 1-1/2" Combo Lug, Aluminum NST (NH) 100 ft 11.9200 13.5800

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
