R509-10X10 by Couplamatic | R5 Series Coupling | 1/2" Hose ID x 7/8x14 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating | Pack of 10
Package Quantity: 10 EA
Buy more, save moreDiscounts applied in cart/checkout.
R5 Series — Textile Cover Hose
R509 R5 Series — JIC 37°, Female Swivel, Straight
R509 is the JIC 37°, Female Swivel, Straight configuration of the R5 Series, terminating SAE 100R5 textile cover hose, including HTR5 high temperature R5.
1
What are the main product features?
- The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
- Trivalent Zinc Plating
- Built for textile cover hose — sized to 100R5 and HTR5 hose dimensions.
- Minimum order quantities apply — 10 pieces for 3/16"–5/8", 5 pieces for 7/8" and 1-1/8".
2
Which sizes are available?

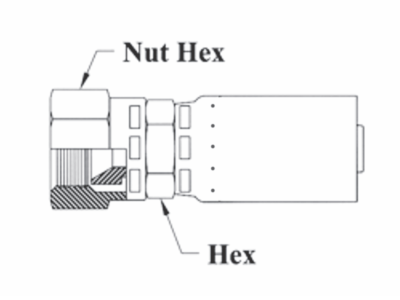

| Part Number | Hose ID | Tube Size | Thread Size | Hex Size | Nut Hex | Cross Reference Part Numbers |
|---|---|---|---|---|---|---|
| Weatherhead 069E | ||||||
| R509-4X4 | 3/16" | 1/4" | 7/16x20 | 9/16" | 9/16" | 06904E-604 |
| R509-5X5 | 1/4" | 5/16" | 1/2x20 | 9/16" | 5/8" | 06905E-605 |
| R509-6X6 | 5/16" | 3/8" | 9/16x18 | 11/16" | 11/16" | 06906E-606 |
| R509-6X8 | 5/16" | 1/2" | 3/4x16 | 3/4" | 7/8" | 06906E-608 |
| R509-8X8 | 13/32" | 1/2" | 3/4x16 | 3/4" | 7/8" | 06908E-608 |
| R509-8X10 | 13/32" | 5/8" | 7/8x14 | 7/8" | 1" | 06908E-610 |
| R509-10X8 | 1/2" | 1/2" | 3/4x16 | 7/8" | 7/8" | 06910E-608 |
| R509-10X10 | 1/2" | 5/8" | 7/8x14 | 7/8" | 1" | 06910E-610 |
| R509-12X12 | 5/8" | 3/4" | 1-1/16x12 | 1" | 1-1/4" | 06912E-612 |
| R509-16X16 | 7/8" | 1" | 1-5/16x12 | 1-1/4" | 1-1/2" | 06916E-616 |
| R509-20X20 | 1-1/8" | 1-1/4" | 1-5/8x12 | 1-5/8" | 2" | 06920E-620 |
| R509-24X24 | 1-3/8" | 1-1/2" | 1-7/8x12 | 2" | 2-1/4" | 06924E-624 |
| R509-32X32 | 1-13/16" | 2" | 2-1/2x12 | 2-1/2" | 2-7/8" | 06932E-632 |
