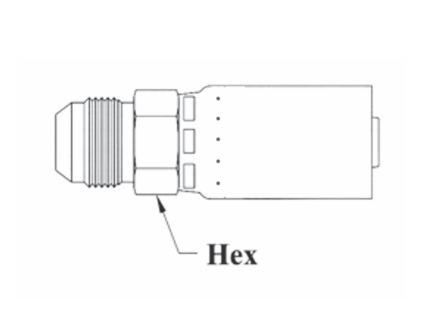

R508-6X6 by Couplamatic | R5 Series Coupling | 5/16" Hose ID x 9/16x18 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating | Pack of 10

R508-6X6 by Couplamatic | R5 Series Coupling | 5/16" Hose ID x 9/16x18 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating | Pack of 10

Sale price$62.58

Couplamatic Systems Inc.
R5 Series - JIC 37° - Male Solid

Package Quantity: 10 EA

Buy More, Save More!
Quantity Price Each
10–39 $58.83
40–79 $53.19
80+ $46.94
Discounts applied in cart/checkout.

Product Data:

Series:
  • R5 Series
Shape:

Straight

Ends Configuration:
  • 3/8in Male JIC
  • 5/16in Hose Barb
Description:
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.
Part Number Hose ID Pipe Size Thread Size Nut Hex Cross Reference Part Numbers
Weatherhead 069E
R508-4X4 3/16" 1/4" 7/16x20 9/16" 06904E-504
R508-5X5 1/4" 5/16" 1/2x20 9/16" 06905E-505
R508-6X6 5/16" 3/8" 9/16x18 5/8" 06906E-506
R508-8X8 13/32" 1/2" 3/4x16 7/8" 06908E-508
R508-10X10 1/2" 5/8" 7/8x14 15/16" 06910E-510
R508-16X16 7/8" 1" 1-5/16x12 1-3/8" 06916E-516

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
