R508-16X16 by Couplamatic | R5 Series Coupling | 7/8" Hose ID x 1-5/16x12 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating | Pack of 5
Package Quantity: 5 EA
Buy more, save moreDiscounts applied in cart/checkout.
R5 Series — Textile Cover Hose

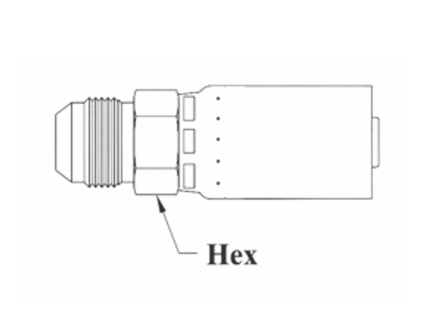

R508 R5 Series — JIC 37°, Male Solid, Straight
R508 is the JIC 37°, Male Solid, Straight configuration of the R5 Series, terminating SAE 100R5 textile cover hose, including HTR5 high temperature R5.
1
What are the main product features?
- The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
- Trivalent Zinc Plating
- Built for textile cover hose — sized to 100R5 and HTR5 hose dimensions.
- Minimum order quantities apply — 10 pieces for 3/16"–5/8", 5 pieces for 7/8" and 1-1/8".
2
Which sizes are available?
| Part Number | Hose ID | Pipe Size | Thread Size | Nut Hex | Cross Reference Part Numbers |
|---|---|---|---|---|---|
| Weatherhead 069E | |||||
| R508-4X4 | 3/16" | 1/4" | 7/16x20 | 9/16" | 06904E-504 |
| R508-5X5 | 1/4" | 5/16" | 1/2x20 | 9/16" | 06905E-505 |
| R508-6X6 | 5/16" | 3/8" | 9/16x18 | 5/8" | 06906E-506 |
| R508-8X8 | 13/32" | 1/2" | 3/4x16 | 7/8" | 06908E-508 |
| R508-10X10 | 1/2" | 5/8" | 7/8x14 | 15/16" | 06910E-510 |
| R508-16X16 | 7/8" | 1" | 1-5/16x12 | 1-3/8" | 06916E-516 |
Additional Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
