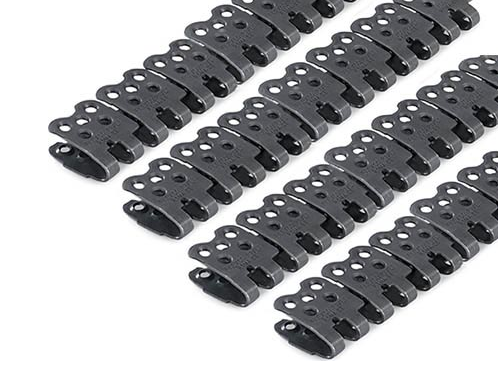

R5-1/2MA-SE by Flexco | #41450 | SR Scalloped Edge R5-1/2 Rivet Hinged Fasteners | Megalloy | 4 Plate Strips | 10 Strips per Box

The Flexco® SR™ Rivet Hinged Fastening System has earned a reputation for quality and performance in the most demanding material handling applications on earth. Wherever belt conveyors are used, you need a fastener system that lets you set up, splice, and get out of the way... fast. Flexco SR fasteners deliver the performance, long life, and easy installation that maximize belt availability and help keep productivity on a roll.

Flexco Rivet Hinged Fasteners combine top and bottom fastener plates, which are joined at one end by two wide hinge loops. Each pair of plates sandwich the belt end and are secured to the belt with a staggered pattern of rivets. The rivets penetrate the belt without damaging or weakening the belt carcass providing maximum resistance to pull-out and evenly distributed splice tension across the width of the belt. No matter what the belt condition, Flexco SR fasteners are a good choice for both new and older, worn belts. Rivet hinged fasteners can be used on belts ranging from 1/8" to 1" (3 - 25 mm) after skive with pulley diameters over 5" (127 mm). Concerns about comparable vulcanized splice strength can be dismissed as rivet hinged fasteners have a long history of service on belts with mechanical fastener rating of up to 2000 P.I.W. (350 kN/m).

Each Set Contains:
4 plate strips, 10 Strips per box Note: You must order each component separately for a complete splice. (Fastener Strip + Rivets + Hinge Pin)
Applications:
Coal and Hard Rock, Underground and Surface Mining, Wood Processing, Asphalt Plants, Construction and Road Equipment
Features:
Midsize R5-1/2 is ideal as an upgrade for R5 or in applications where pulley size prohibits the use of R6. Lower fastener profile extends belt splice life. Less effort required for installation. Reduces maintenance costs. Viewport assures proper installation alignment.

Rivet Hinged Fastener Selection Chart
Fastener Size	For Belts With Mechanical Fastener Ratings Up To:		Belt Thickness Range		Recommended Min. Pulley Diameter
					Operating Tension Under 100% of Belt Rating		Operating Tension Under 75% of Belt Rating
	P.I.W.	kN/m	in	mm	in	mm	in	mm
R2	330	60	1/8" - 3/8"	3mm - 10mm	5"	127mm	5"	127mm
R5	450	79	7/32" - 7/16"	6mm - 11mm	9"	230mm	7"	175mm
R5-1/2	650	114	5/16" - 19/32"	8mm - 15mm	12"	300mm	10"	250mm
R6*	800	140	13/32" - 11/16"	10.5mm - 17mm	18"	450mm	16"	400mm
R8	1500	263	13/32" - 11/16"	10.5mm - 17mm	18"	450mm	16"	400mm
R9	2000	350	5/8" - 1"	16mm - 25.5mm	42"	1050mm	42"	1050mm

* R6 can be used in certain applications up to 1200 P.I.W. (210 kN/m) with R6 RustAlloy® and stainless steel rivets. Contact us for details.

Part Number	Plates Required for one R5MA Joint
	Belt Width		Plates Required
	in	mm
R5-1/2MA-SE	18"	450mm	20
	24"	600mm	26
	30"	750mm	32
	36"	900mm	40
	42"	1050mm	46
	48"	1200mm	54
	54"	1350mm	60
	60"	1500mm	68
	72"	1800mm	82
