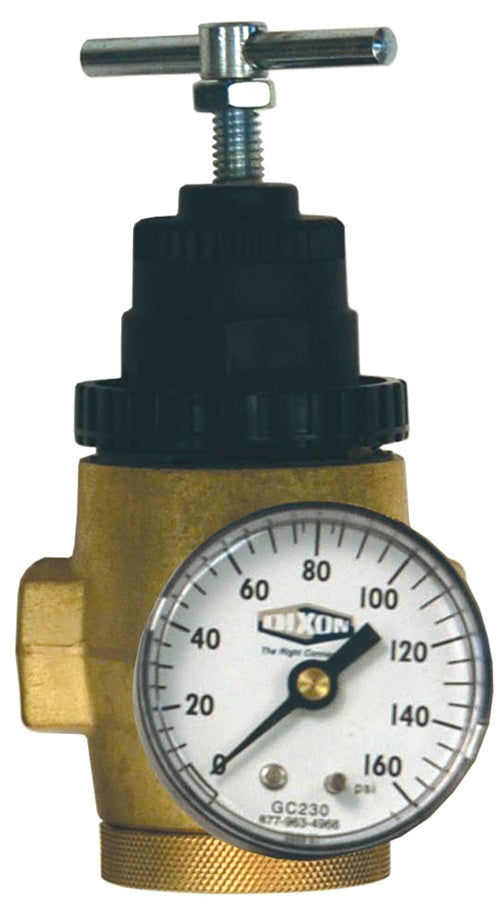

R43-201RG by Dixon Valve | R43 Series 1 | Water Pressure Regulator | 1/4" Port Size | 5 GPM | with Gauge | 5-125 PSI Pressure Range

R43-201RG by Dixon Valve | R43 Series 1 | Water Pressure Regulator | 1/4" Port Size | 5 GPM | with Gauge | 5-125 PSI Pressure Range

Sale price$389.39

Dixon Valve
R43 Series 1 | Water Pressure Regulator

Used in water systems to reduce and maintain pressure at a nearly constant level despite changes in the inlet pressure and changes in downstream flow requirements.

Pressure range: 5-125 PSI
Buy More, Save More!
Quantity Price Each
5–14 $366.03
15–29 $330.98
30+ $311.51
Discounts applied in cart/checkout.
Features:
  • T-handle adjustment.
  • Brass body and aluminum bonnet.
  • Non-relieving type.
  • Gauge port is full-flow and can be used as an outlet port.
  • Supplied with GC230 gauge.
  • Food grade elastomers.
Specifications:
  • Pressure range: 5-125 PSI
  • Inlet pressure: 400 PSI
  • Temperature Range:
    • Water Service: 35° to 200°F (2°C to 93°C)
    • Air Service: -30° to 200°F (-34°C to 93°C)
  • Flow ratings given at 150 PSIG inlet pressure.
Dimensions:
With Gauge
Part Number 		Port Size Flow (GPM)
R43-201RG 1/4" 5 GPM
R43-301RG 3/8" 5 GPM
R43-406RG 1/2" 10 GPM

Product Data:

Series:
  • R43 Series 1

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
