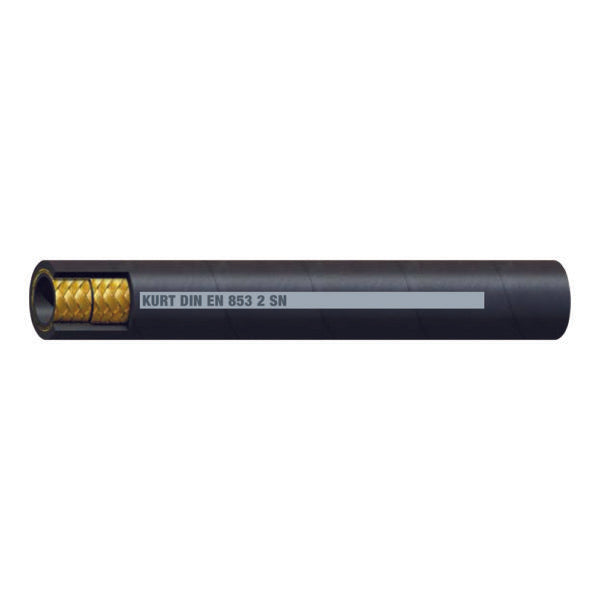

R2S-04 by Kurt Hydraulics | R2S Series | 0.25in ID x 0.59in ID | 5800 MAWP | 2-Wire Hydraulic Hose with Nitrile Tube and Neoprene Cover | SAE 100R2-S, DIN EN 853 2SN, Applicable MSHA Standards | Black | 550ft Reel
by Kurt Hydraulics
Kurt Fittings and Hose should only be used together.
Package Quantity: 550 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,349.22 |
| 8–14 | $1,291.81 |
| 15+ | $1,148.27 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
5800
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Recommended for: High pressure hydraulic oil lines
Tube: Oil resistant synthetic rubber
Reinforcement: Two high tensile steel wire braid
Cover: Abrasion, ozone and weather resistant synthetic rubber
Meets: Flame resistant MSHA designation
Temperature Range: -40°F to +212°F (+250°F Max)
| Part Number | Hose I.D. (in.) | Hose O.D. (in.) | Rated W.P. (psi) | Min. Burst (psi) | Min. Bend (in.) | Weight (Lb/Ft) |
|---|---|---|---|---|---|---|
| R2S-04 | 1/4 | 0.59 | 5,750 | 23,000 | 4 | 0.21 |
| R2S-06 | 3/8 | 0.75 | 4,750 | 19,000 | 5 | 0.30 |
| R2S-08 | 1/2 | 0.87 | 4,000 | 16,000 | 6 | 0.36 |
| R2S-10 | 5/8 | 1.00 | 3,500 | 14,000 | 8 | 0.44 |
| R2S-12 | 3/4 | 1.15 | 3,000 | 12,000 | 9.5 | 0.56 |
| R2S-16 | 1 | 1.50 | 2,250 | 9,000 | 12 | 0.82 |
| R2S-20 | 1-1/4 | 1.88 | 1,625 | 6,500 | 15 | 1.19 |
| R2S-24 | 1-1/2 | 2.15 | 1,300 | 5,200 | 20 | 1.43 |
| R2S-32 | 2 | 2.63 | 1,250 | 5,000 | 24.5 | 1.87 |
