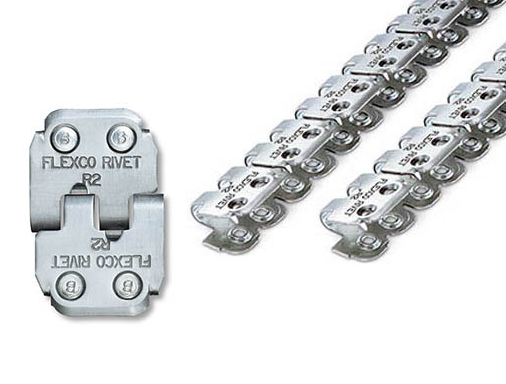

R2-30/750 Flexco R2 Medium Duty Rivet Hinged Belt Fasteners - STEEL (2 Continuous Strips) - 41616 - 30" Belt Width

R2-30/750 by Flexco | #41616 | R2 Medium Duty Rivet Hinged Belt Fasteners | 30" Belt Width | Steel | 2 Continuous Strips

Sale price$48.75
FREE SHIPPING DOMESTICALLY!
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
The Flexco® SR™ Rivet Hinged Fastening System has earned a reputation for quality and performance in the most demanding material handling applications on earth. Wherever belt conveyors are used, you need a fastener system that lets you set up, splice, and get out of the way... fast. Flexco SR fasteners deliver the performance, long life, and easy installation that maximize belt availability and help keep productivity on a roll.

Flexco Rivet Hinged Fasteners combine top and bottom fastener plates, which are joined at one end by two wide hinge loops. Each pair of plates sandwich the belt end and are secured to the belt with a staggered pattern of rivets. The rivets penetrate the belt without damaging or weakening the belt carcass providing maximum resistance to pull-out and evenly distributed splice tension across the width of the belt. No matter what the belt condition, Flexco SR fasteners are a good choice for both new and older, worn belts. Rivet hinged fasteners can be used on belts ranging from 1/8" to 1" (3 - 25 mm) after skive with pulley diameters over 5" (127 mm). Concerns about comparable vulcanized splice strength can be dismissed as rivet hinged fasteners have a long history of service on belts with mechanical fastener rating of up to 2000 P.I.W. (350 kN/m).
Each Set Contains:
  • 2 Fastener Strips
  • Note: You must order each component separately for a complete splice.
Applications:
  • Coal and Hard Rock, Underground and Surface Mining, Wood Processing, Asphalt Plants, Construction and Road Equipment
Features:
  • Unique two teeth/two rivet combination offers highest efficiencies in strength and durability for medium-duty applications.
  • Lower fastener profile extends belt splice life.
  • Less effort required for installation.
  • Reduces maintenance costs.
  • Viewport assures proper installation alignment.
* R6 can be used in certain applications up to 1200 P.I.W. (210 kN/m) with R6 RustAlloy® and stainless steel rivets. Contact us for details.

Part Number Belt Width
R2-12/300 12"
R2-18/450 18"
R2-24/600 24"
R2-30/750 30"
R2-36/900 36"
R2-42/1050 42"
R2-48/1200 48"
R2-54/1350 54"
R2-60/1500 60"

Additional Product Data:

Material(s):
  • Steel
Applicable Belt Thickness:
  • 1/8in to 3/8in
Applicable Belt Width:

30in

Flexco

From its inception, Flexco has focused on just one thing, maximising belt conveyor productivity. Whether you are a small farm in the Midwestern United States, or a large mine in eastern Europe, or a global parcel handling operation with facilities around the world, we are focused on becoming your number one resource for products and services that maximise your belt conveyor uptime, productivity, and safety.
