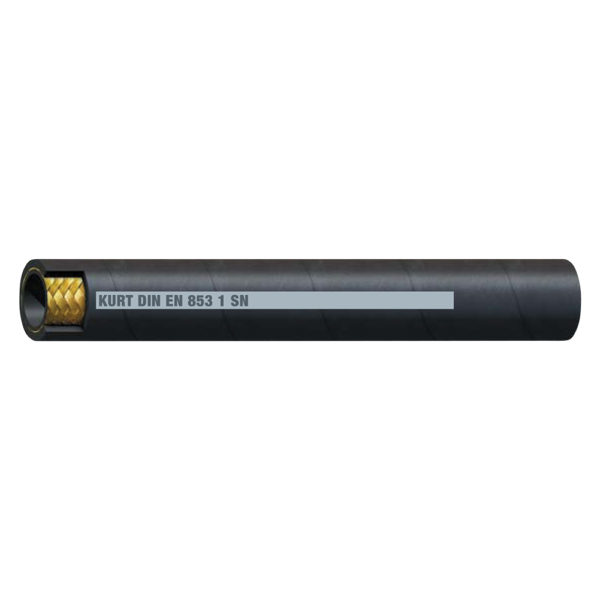

R1S-08 by Kurt Hydraulics | R1S Series | 1.50in ID x 0.81in ID | 2320 MAWP | 1-Wire Hydraulic Hose with Nitrile Tube and Neoprene Cover | SAE 100R1-S, DIN EN 853 1SN, Applicable MSHA Standards | Black | 330ft Reel
by Kurt Hydraulics
Kurt Fittings and Hose should only be used together.
Package Quantity: 330 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,039.84 |
| 8–14 | $995.59 |
| 15+ | $884.97 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
2320
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Recommended for: Medium pressure hydraulic oil lines
Tube: Oil resistant synthetic rubber
Reinforcement: One high tensile steel wire braid
Cover: Abrasion, ozone and weather resistant synthetic rubber
Meets: Flame resistant MSHA designation
Temperature Range: -40°F to +212°F (+250°F Max)
| Part Number | Hose I.D. (in.) | Hose O.D. (in.) | Rated W.P. (psi) | Min. Burst (psi) | Min. Bend (in.) | Weight (Lb/Ft) |
|---|---|---|---|---|---|---|
| R1S-04 | 1/4 | 0.51 | 3,250 | 13,000 | 4 | 0.13 |
| R1S-06 | 3/8 | 0.61 | 2,500 | 10,000 | 5 | 0.19 |
| R1S-08 | 1/2 | 0.79 | 2,250 | 9,000 | 7 | 0.24 |
| R1S-10 | 5/8 | 0.91 | 1,750 | 7,000 | 8 | 0.30 |
| R1S-12 | 3/4 | 1.07 | 1,500 | 6,000 | 9.5 | 0.38 |
| R1S-16 | 1 | 1.38 | 1,250 | 5,000 | 12 | 0.56 |
