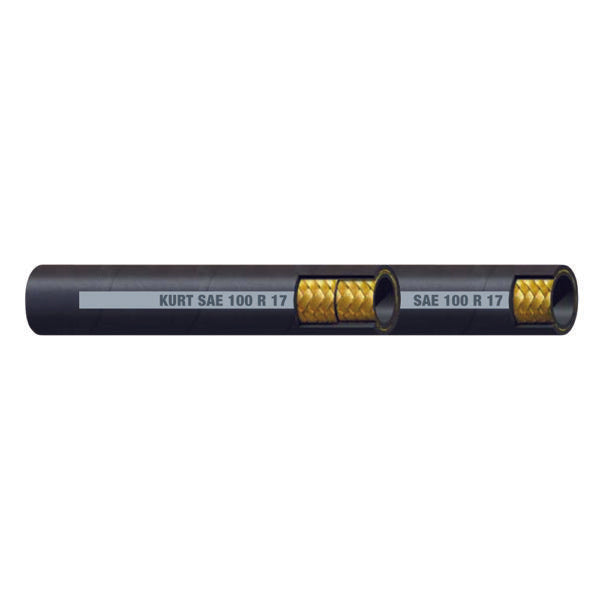

R17-06-Reel by Kurt Hydraulics | R17 Series | 0.375in ID x 0.65in ID | 3000 MAWP | 2-Wire Hydraulic Hose with Nitrile Tube and Neoprene Cover | SAE 100R17, Applicable MSHA Standards | Black | 500ft Reel
by Kurt Hydraulics
Kurt Fittings and Hose should only be used together.
Package Quantity: 500 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,288.30 |
| 8–14 | $1,233.48 |
| 15+ | $1,096.42 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
3000
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Recommended for: High pressure hydraulic oil lines, SAE J1942 U.S.C.G Accepted Hydraulic Only
Tube: Oil resistant synthetic rubber
Reinforcement: Up to 1/2" one, from 5/8" two high tensile steel wire braid
Cover: Abrasion, ozone and weather resistant synthetic rubber
Meets: Flame resistant MSHA designation
Temperature Range: -40°F to +212°F
| Part Number | Hose I.D. (in.) | Hose O.D. (in.) | Rated W.P. (psi) | Min. Burst (psi) | Min. Bend (in.) | Weight (Lb/Ft) |
|---|---|---|---|---|---|---|
| R17-04-Reel | 1/4 | 0.49 | 3,000 | 12,000 | 2 | 0.11 |
| R17-06-Reel | 3/8 | 0.63 | 3,000 | 12,000 | 2.5 | 0.18 |
| R17-08-Reel | 1/2 | 0.8 | 3,000 | 12,000 | 3.5 | 0.26 |
| R17-10-Reel | 5/8 | 0.94 | 3,000 | 12,000 | 4 | 0.32 |
| R17-12-Reel | 3/4 | 1.1 | 3,000 | 12,000 | 4.5 | 0.44 |
| R17-16-Reel | 1 | 1.43 | 3,000 | 12,000 | 6 | 0.85 |
