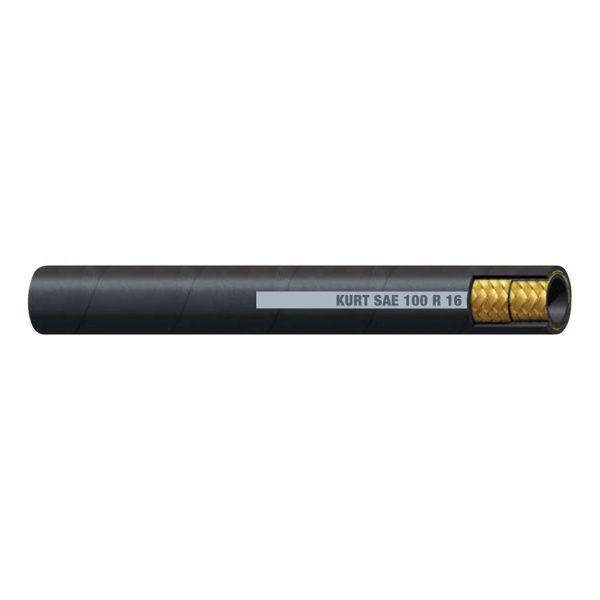

R16S-10 by Kurt Hydraulics | R16S Series | 0.625in ID x 1in ID | 3620 MAWP | 2-Wire Hydraulic Hose with Nitrile Tube and Neoprene Cover | SAE 100R16-S, Applicable MSHA Standards | Black | 520ft Reel
by Kurt Hydraulics
Kurt Fittings and Hose should only be used together.
Package Quantity: 520 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $2,592.40 |
| 4–9 | $2,482.08 |
| 10+ | $2,206.30 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
3620
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Recommended for: High pressure hydraulic oil lines
Tube: Oil resistant synthetic rubber
Reinforcement: Two high tensile steel wire braid
Cover: Abrasion, ozone and weather resistant synthetic rubber
Meets: Flame resistant MSHA designation
Temperature Range: -40°F to +212°F
| Part Number | Hose I.D. (in.) | Hose O.D. (in.) | Rated W.P. (psi) | Min. Burst (psi) | Min. Bend (in.) | Weight (Lb/Ft) |
|---|---|---|---|---|---|---|
| R16S-04 | 1/4 | 0.54 | 5,750 | 23,000 | 2 | 0.17 |
| R16S-06 | 3/8 | 0.67 | 4,750 | 19,000 | 2.5 | 0.24 |
| R16S-08 | 1/2 | 0.81 | 4,000 | 16,000 | 3.5 | 0.31 |
| R16S-10 | 5/8 | 0.94 | 3,500 | 14,000 | 4 | 0.42 |
| R16S-12 | 3/4 | 1.09 | 3,000 | 12,000 | 4.5 | 0.52 |
| R16S-16 | 1 | 1.39 | 2,250 | 9,000 | 6 | 0.78 |
