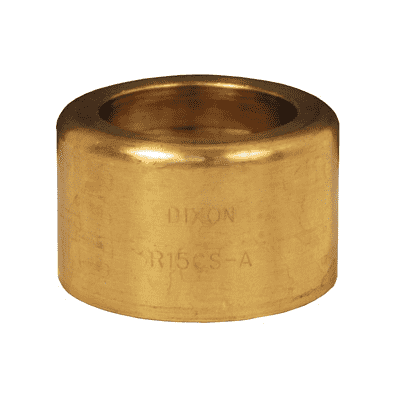

R15GS Dixon Valve 1-1/2" Brass Scovill Style 520-H Ferrule - Hose OD from 2-25/64" to 2-28/64"
Dixon

R15GS Dixon Valve 1-1/2" Brass Scovill Style 520-H Ferrule - Hose OD from 2-25/64" to 2-28/64"

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Applications:
  • Intended for fuel delivery service. Commonly used in the transfer of fuel to homes, airplanes, ships, etc.
  • Recommended for discharge and suction service.
  • For use with Brass internally expanded permanent couplings.
  • H520 fittings are design for internal expansion only.
Features:
  • A wide range of sizes permits a perfect assembly of a coupling to a corresponding size of hose within commercial tolerances regardless of wall thickness.
  • Eliminates need for large stock of coupling bodies.
Safety Notes:
  • Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system.
  • Designed for internal expansion only.
  • Do not interchange with other manufacturer's fittings.
  • Do not use a wrench or vice on ferrule.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Strict adherence to ferrule OD range (Internally Expanded) for each hose end to be assembled is essential for satisfactory performance.
  • Internally Expanded Holedall Couplings are not to be used with plastic lined chemical hose.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
Hose OD
Part Number Hose ID From To Weight (Lbs.)
R15AAAS-A 1-1/2" 1-54/64" 1-57/64" 0.2370
R15AAS-A 1-1/2" 1-58/64" 1-62/64" 0.2600
R15AS-A 1-1/2" 1-63/64" 2-2/64" 0.2800
R15BS-A 1-1/2" 2-3/64" 2-6/64" 0.2950
R15CS-A 1-1/2" 2-7/64" 2-11/64" 0.3000
R15DS-A 1-1/2" 2-12/64" 2-14/64" 0.3350
R15ES-A 1-1/2" 2-15/64" 2-19/64" 0.3500
R15FS* 1-1/2" 2-20/64" 2-24/64" 0.3295
R15GS* 1-1/2" 2-25/64" 2-28/64" 0.3295
* Will be replaced by API ferrules

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
