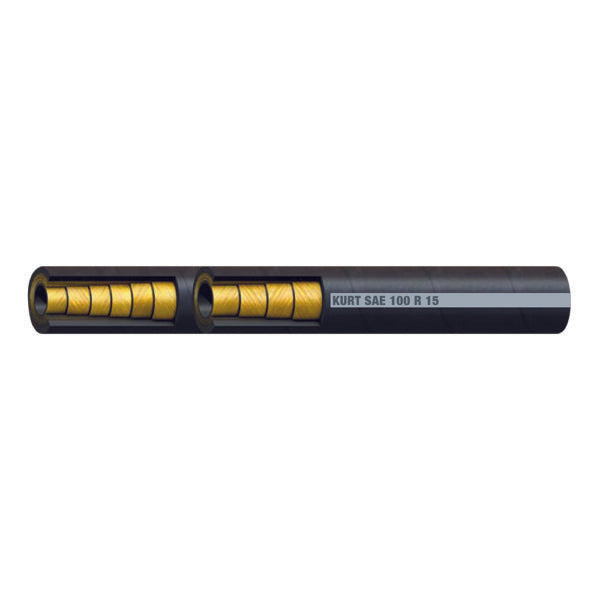

R15-24 by Kurt Hydraulics | SAE 100R15 | 6-Spiral Layer Hydraulic Hose | 100' Reel Length

R15-24 by Kurt Hydraulics | SAE 100R15 | 6-Spiral Layer Hydraulic Hose | 100' Reel Length

Sale price$3,218.92

by Kurt Hydraulics
SAE R15 DIN EN 856 Hydraulic Hose

Kurt Fittings and Hose should only be used together.

Package Quantity: 100 Feet

Buy More, Save More!
Quantity Price Each
2–3 $3,025.78
4–9 $2,897.03
10+ $2,575.14
Discounts applied in cart/checkout.

Product Data:

Dash Size:
  • -24
Internal Diameter:
  • 1.50in
Outer Diameter:
  • 2.35in
Part Number Hose I.D.
(In)		 Hose O.D.
(In)		 Rated W.P.
(PSI)		 Min. Burst
(PSI)		 Min. Bend
(In)		 Weight
(Lbs/Ft)
R15-12 3/4" 1.26" 6000 24000 10.5" 1.68
R15-16 1" 1.51" 6000 24000 13" 1.79
R15-20 1-1/4" 1.94" 6000 24000 17.5" 2.43
R15-24 1-1/2" 2.26" 6000 24000 21" 3.17


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
