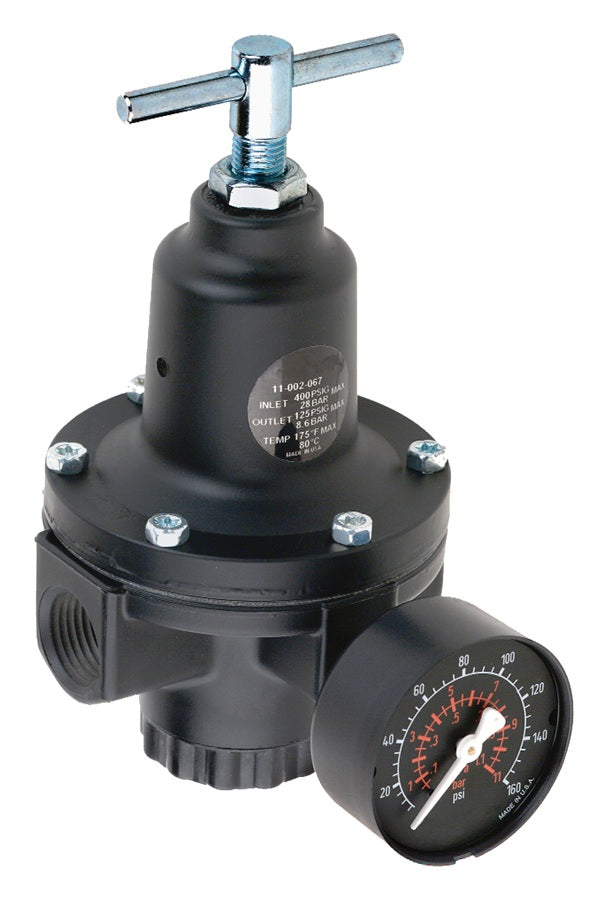

R11-061RG by Dixon Valve | R11 Series 1 | General T-Handle Regulator | 1/2" Port Size | 260 SCFM | With Gauge | 5-125 PSI Pressure Range

R11-061RG by Dixon Valve | R11 Series 1 | General T-Handle Regulator | 1/2" Port Size | 260 SCFM | With Gauge | 5-125 PSI Pressure Range

Sale price$351.28

Dixon Valve
R11 Series 1 | General T-Handle Regulator

Pressure range: 5-125 PSI

For air service only.
Buy More, Save More!
Quantity Price Each
5–14 $330.20
15–29 $298.59
30+ $263.46
Discounts applied in cart/checkout.

Product Data:

Series:
  • R11 Series 1
Features:
  • T-handle adjustment.
  • Floating valve pin provides positive seating and dependability.
  • Large diaphragm provides quick response to flow demands and line pressure changes.
  • Balanced valve reduces inlet pressure variations on outlet pressure.
  • Supplied with GC620 gauge.
Specifications:
  • Pressure range: 5-125 PSI.
  • Inlet pressure: 400 PSI.
  • Maximum temperature: 175°F (80°C).
  • SCFM ratings at 150 PSIG inlet pressure.
Dimensions:
With Gauge
Part Number 		Port Size Flow (SCFM)
R11-013RG 1/4" 110 SCFM
R11-037RG 3/8" 110 SCFM
R11-061RG 1/2" 260 SCFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
