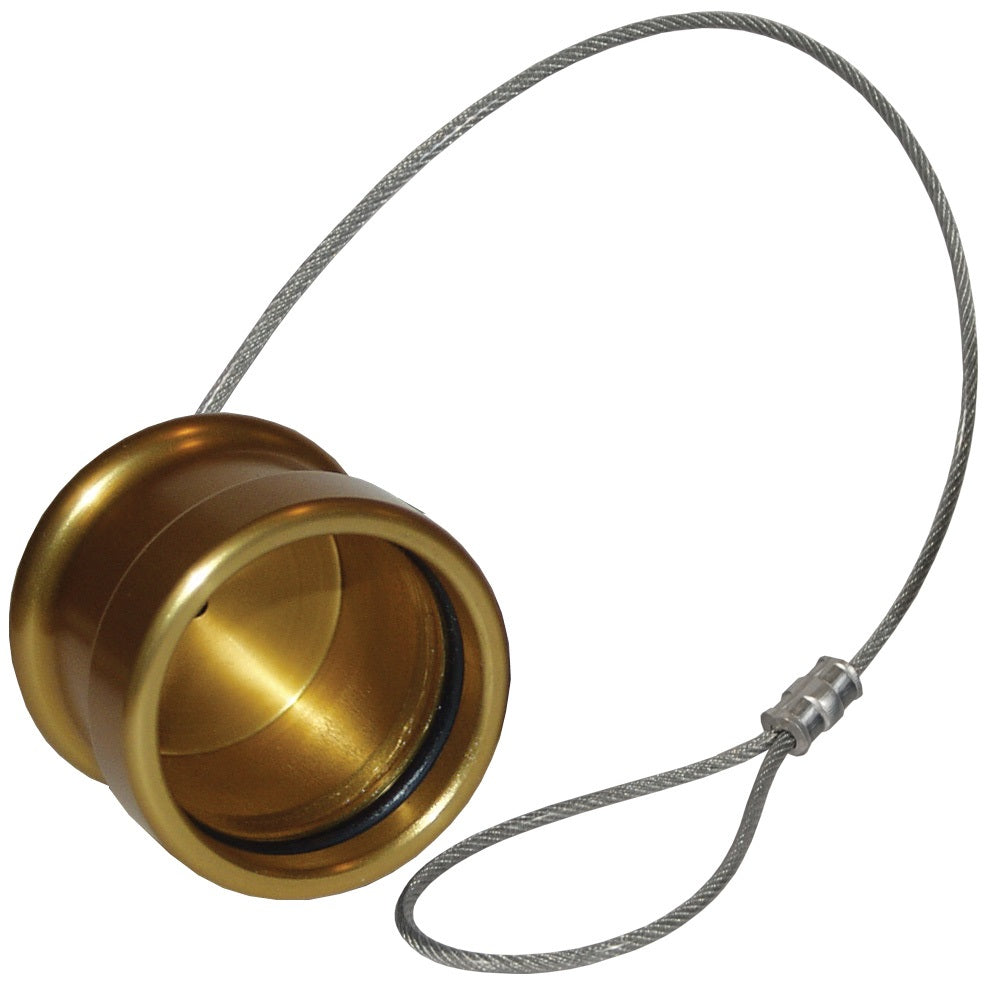

R-HR-CAP by Dixon Valve | FloMAX R-Series (Roll-Pin Style) | Hydraulic Oil Receiver Cap | Gold | Anodized Aluminum

R-HR-CAP by Dixon Valve | FloMAX R-Series (Roll-Pin Style) | Hydraulic Oil Receiver Cap | Gold | Anodized Aluminum

Sale price$82.22

Dixon Valve
FloMAX R-Series (Roll-Pin Style) | Hydraulic Oil Receiver

Fully compatible and interchangeable with industry standards.
Buy More, Save More!
Quantity Price Each
5–19 $77.29
20–59 $69.89
60+ $61.67
Discounts applied in cart/checkout.

Product Data:

Brand:
  • FloMAX
Series:
  • R-HR Series
Material(s):
  • Anodized Aluminum
Features:
  • Bright Gold.
  • Standard roll-pin locking mechanism.
  • Ergonomically engineered pullback.
Construction:
  • All-metal construction.
  • Anodized aircraft grade aluminum non-wear components.
Hydraulic Oil Nozzles
Part Number Description Thread Size Cross Over Part Numbers
Caterpillar® Wiggins FastFill
R-HN Hydraulic Oil Nozzle 1" Female NPT - R17 N300R
R-HN-P Hydraulic Oil Nozzle with Plug 1" Female NPT - - N300RP
R-HN-PLUG Hydraulic Oil Nozzle Plug - - R1707 P300R
Hydraulic Oil Receivers
Part Number Description Male Thread Size Female Thread Size Cross Over Part Numbers
Caterpillar® Wiggins FastFill
R-HR Hydraulic Oil Receiver 1.875-12 UN-2A 1.625-12 UN-2B - R18 R300R
R-HR-C Hydraulic Oil Receiver with Cap 1.875-12 UN-2A 1.625-12 UN-2B - - R300RC
R-HR-CAP Hydraulic Oil Receiver Cap - - - R1805 C300R

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
