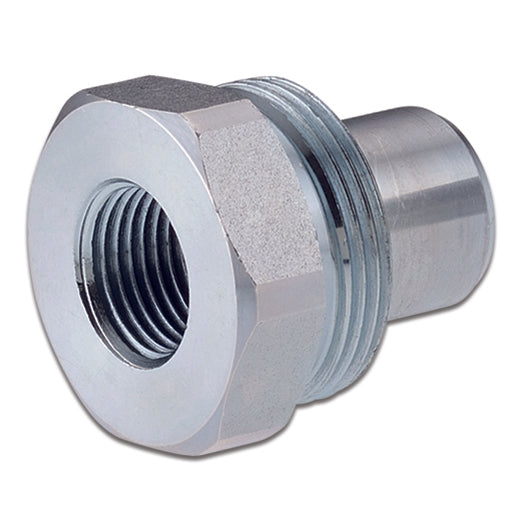

QXM-0606-MNPT ARGUS by Kuriyama | Hydraulic Quick Disconnect Coupling | QX Series | Screw Coupling Poppet | -06 ISO 14540 x -06 Female NPTF | Plug | Galvanized Steel

QXM-0606-MNPT ARGUS by Kuriyama | Hydraulic Quick Disconnect Coupling | QX Series | Screw Coupling Poppet | -06 ISO 14540 x -06 Female NPTF | Plug | Galvanized Steel

Sale price$16.22

Kuriyama of America Inc.
ARGUS | Hydraulic Quick Disconnect Plug | QX Series | Screw Coupling Poppet ISO 14540

ARGUS QX high pressure couplings can be used for connecting and disconnecting hydraulic lines.

Suitable for liquid lines with mineral oil-based hydraulic fluids to DIN 51524 T1+T2.
Buy More, Save More!
Quantity Price Each
10–39 $15.25
40–79 $13.79
80+ $12.17
Discounts applied in cart/checkout.

Product Data:

Brand:
  • ARGUS
Series:
  • QG Series
Shape:

Straight
Features:
  • Typically employed in power tools.
  • ARGUS QX high pressure couplings can be used for connecting and disconnecting hydraulic lines.
  • Their robust construction and tested components make them ideally suited for high and intermittent pressure loads.
  • During the coupling action, valves that release and/or block the flow are automatically activated.
  • The QX quick release coupling, formed by coupling plug and coupling socket, is coupled by a screwing action with the hand nut of the plug component.
Construction:
  • Galvanized steel.
  • HNBR o-rings.
  • Thermoplastic dust cap and dust plug.
  • ARGUS couplings feature a chrome-III zinc plating with a long lasting resistance to oxidation (TOP COAT, patented).
Application:
  • Suitable for liquid lines with mineral oil-based hydraulic fluids to DIN 51524 T1+T2.
Specifications:
  • ISO 14540
  • NPTF connection according to ANSI B1-20.3.
Temperature range:
  • -22°F (-30°C) to +257°F (+125°C)
QX Series | Screw Coupling Poppet ISO 14540 | Rated Pressure Chart
Dash Size ID Size Working Pressure PSI Burst Pressure PSI
All Sizes All Sizes 10150 PSI 40600 PSI
Plug | QX Series | Screw Coupling Poppet ISO 14540
Part
Number		 Coupling
Type		 ID
Size		 Threads D1 CH L1 L Dust Cap
Dash Size mm in mm mm mm mm
QXM-0404-FNPR Plug/Male 04 6.0mm 1/4" 1/4-18 Female NPTF 15.8mm 19.0mm 32.5mm 74.00mm QXC-04
QXM-0606-FNPR Plug/Male 06 10.0mm 3/8" 3/8-18 Female NPTF 19.0mm 32.0mm 35.0mm 83.00mm QXC-06
Socket | QX Series | Screw Coupling Poppet ISO 14540
Part
Number		 Coupling
Type		 ID
Size		 Threads D1 CH L1 L Dust Plug
Dash Size mm in mm mm mm mm
QXF-0404-MNPT Socket/Female 04 6.0mm 1/4" 1/4-18 Male NPTF 28.5mm 22.0mm 59.6mm 74.00mm QXP-04
QXF-0606-MNPT Socket/Female 06 10.0mm 3/8" 3/8-18 Male NPTF 35.0mm 25.0mm 72.5mm 83.00mm QXP-06
