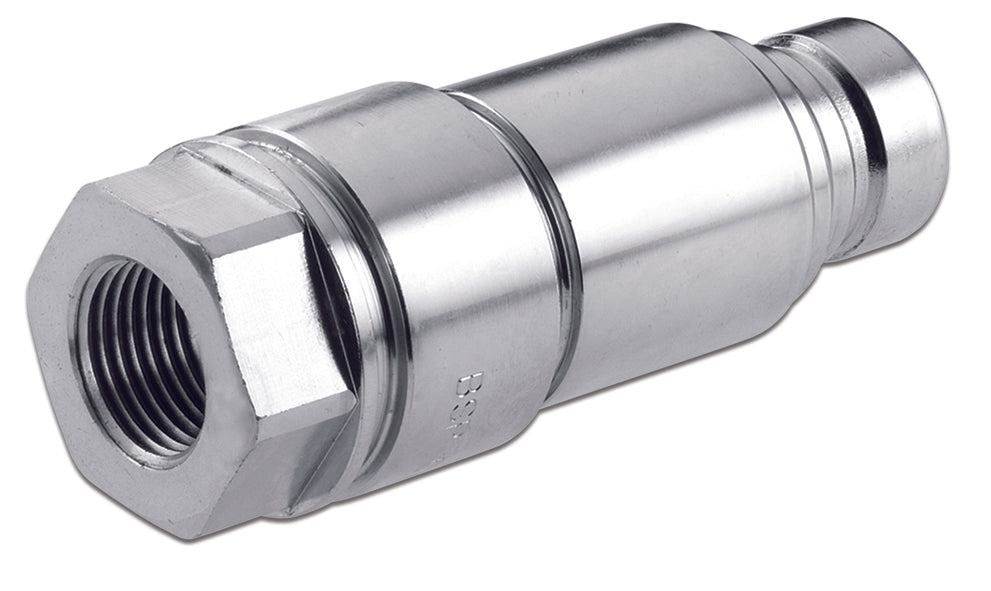

QGM-0808-FNPR ARGUS by Kuriyama | Hydraulic Quick Disconnect Coupling | QG Series | Flat Face Connect Under Pressure Standard ISO 16028 | -08 ISO 16028 x -08 Female NPTF | Plug | Galvanized Steel

QGM-0808-FNPR ARGUS by Kuriyama | Hydraulic Quick Disconnect Coupling | QG Series | Flat Face Connect Under Pressure Standard ISO 16028 | -08 ISO 16028 x -08 Female NPTF | Plug | Galvanized Steel

Sale price$65.28

Kuriyama of America Inc.
ARGUS | Hydraulic Quick Disconnect Plug | QG Series | Flat Face Connect Under Pressure Standard ISO 16028 | Female NPTF

ARGUS QG flat face quick release couplings are used for quick coupling and uncoupling of hydraulic lines.

Suitable for liquid lines with mineral oil-based hydraulic fluids to DIN 51524 T1+T2.
Buy More, Save More!
Quantity Price Each
10–39 $61.36
40–79 $55.49
80+ $48.96
Discounts applied in cart/checkout.

Product Data:

Brand:
  • ARGUS
Series:
  • QG Series
Shape:

Straight
Features:
  • ARGUS QG flat face quick release couplings are used for quick coupling and uncoupling of hydraulic lines.
  • During the coupling action in zero or low-pressure ranges, valves that release or block the flow are automatically activated.
  • The QG flat face quick release coupling, formed by a coupling plug and a coupling socket, is coupled by pushing on a sleeve. This guarantees a flush connection between the two coupling halves.
  • The sleeve is designed to be moved in the relevant direction for disconnecting or connecting the coupling halves.
Construction:
  • Galvanized steel with hardened parts subject to wear.
  • HNBR seals.
  • Backup rings PTFE.
  • Thermoplastic dust cap and dust plug.
  • ARGUS couplings feature a chrome-III zinc plating with a long lasting resistance to oxidation (TOP COAT, patented).
Application:
  • Suitable for liquid lines with mineral oil-based hydraulic fluids to DIN 51524 T1+T2.
Specifications:
  • ISO 16028
  • NPTF connection according to ANSI B1-20.3
Temperature range:
  • -22°F (-30°C) to +257°F (+125°C)
QG Series | Flat Face Connect Under Pressure Standard ISO 16028 | Rated Pressure Chart
Dash Size ID Size Working Pressure PSI Burst Pressure PSI
All Sizes All Sizes 5075 PSI 20300 PSI
Plug | QG Series | Flat Face Connect Under Pressure Standard ISO 16028
Part
Number		 Coupling
Type		 ID
Size		 Threads D1 CH L1 L Dust Cap
Dash Size mm in mm mm mm mm
QGM-0606-FNPR Plug/Male 06 10.0mm 3/8" 3/8-18 Female NPTF 19.7mm 27.0mm 82.5mm 134.00mm QFC-06
QGM-0808-FNPR Plug/Male 08 13.0mm 1/2" 1/2-14 Female NPTF 24.6mm 32.0mm 94.5mm 152.00mm QFC-08
QGM-1212-FNPR Plug/Male 12 19.0mm 3/4" 3/4-14 Female NPTF 29.9mm 42.0mm 118.5mm 189.50mm QFC-12
