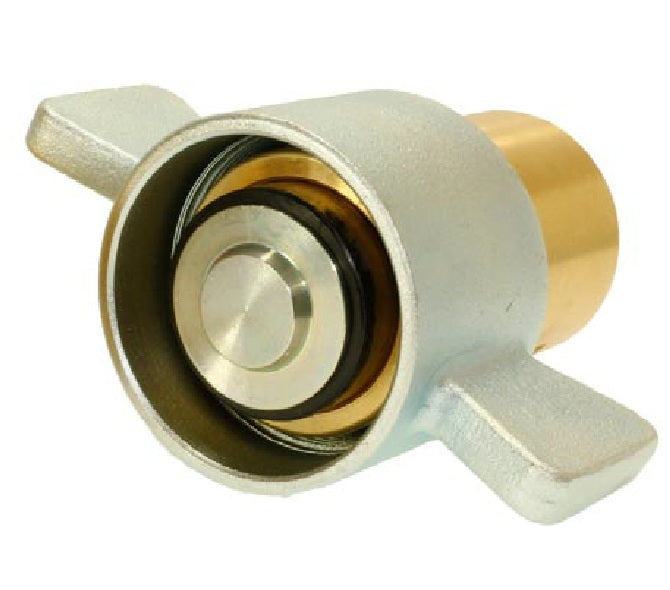

QC-WNG40-F-24N by Couplamatic | Hydraulic Quick Coupler | WNG Series | Screw to Connect | 1-1/2" Body Size x 1-1/2-11-1/2 Female NPT | Socket | Brass with Zinc Plated Wing Nut
Buy more, save moreDiscounts applied in cart/checkout.
Hydraulic Quick Coupler
WNG Series Wing Nut Screw to Connect Quick Coupler
Brass wing nut couplers that connect and disconnect by hand under low residual pressure, for wet line kits and trailers.
1
What are the main product features?
- They are designed for connection and disconnection by hand.
- WNG Series can be connected with low residual pressure (up to 725 PSI or 50 bar).
- Order the halves you need — male and female bodies are listed separately in the chart below.
- Dimensions given for installation — "A", "B" and "C" lengths are in the chart so the coupler can be checked against the space available.
2
What is this coupler used for?
- Trailers
- Wet Line Kits
- Oil and Gas Applications
3
What are the key specifications?
Body Material
Brass
Seals
Nitrile
Plating
Zinc (wing nut)
Temperature
-40°F (-40°C) to 223°F (106°C)
4
Which sizes and configurations are available?
| Part Number | Body Size |
Body Size (ISO) |
Coupler Gender |
Thread Size |
Working Pressure |
Coupled Burst |
Female Burst |
Male Burst |
"A" Length | "B" Length | "C" Length |
|---|---|---|---|---|---|---|---|---|---|---|---|
| QC-WNG19-F-12N | 3/4" | 19 | Female | 3/4-14 NPT | 3045 PSI | 9425 PSI | 8700 PSI | 9425 PSI | 5.3" | 3.1" | — |
| QC-WNG19-M-12N | 3/4" | 19 | Male | 3/4-14 NPT | 3045 PSI | 9425 PSI | 8700 PSI | 9425 PSI | 5.3" | — | 3.2" |
| QC-WNG25-F-16N | 1" | 25 | Female | 1-11-1/2 NPT | 3045 PSI | 9425 PSI | 8700 PSI | 9425 PSI | 6.1" | 3.5" | — |
| QC-WNG25-M-16N | 1" | 25 | Male | 1-11-1/2 NPT | 3045 PSI | 9425 PSI | 8700 PSI | 9425 PSI | 6.1" | — | 3.8" |
| QC-WNG32-F-20N | 1-1/4" | 32 | Female | 1-1/4-11-1/2 NPT | 2755 PSI | 9425 PSI | 8700 PSI | 9425 PSI | 6.4" | 3.7" | — |
| QC-WNG32-M-20N | 1-1/4" | 32 | Male | 1-1/4-11-1/2 NPT | 2755 PSI | 9425 PSI | 8700 PSI | 9425 PSI | 6.4" | — | 3.9" |
| QC-WNG40-F-24N | 1-1/2" | 40 | Female | 1-1/2-11-1/2 NPT | 2538 PSI | 7613 PSI | 6888 PSI | 7613 PSI | 7.0" | 4.1" | — |
| QC-WNG40-M-24N | 1-1/2" | 40 | Male | 1-1/2-11-1/2 NPT | 2538 PSI | 7613 PSI | 6888 PSI | 7613 PSI | 7.0" | — | 4.0" |
Male and female halves are sold separately. Confirm the body size, ISO body size and thread size match the mating half already on the machine before ordering.
