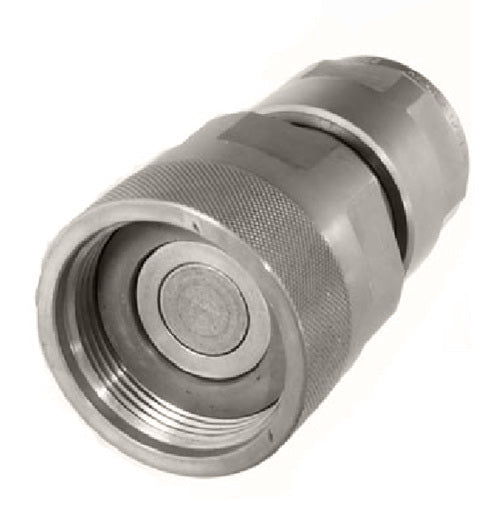

QC-SCFF19-F-12N by Couplamatic | Hydraulic Quick Coupler | SCFF Series | Screw Connect Flat Face | 3/4" Body Size x 3/4-14 Female NPT | Socket | Zinc Nickel Plated

QC-SCFF19-F-12N by Couplamatic | Hydraulic Quick Coupler | SCFF Series | Screw Connect Flat Face | 3/4" Body Size x 3/4-14 Female NPT | Socket | Zinc Nickel Plated

Sale price$240.06

Couplamatic Inc
Hydraulic Quick Couplers - SCFF Series Screw Connect Flat Face Couplers
Buy More, Save More!
Quantity Price Each
5–19 $225.66
20–59 $204.05
60+ $180.05
Discounts applied in cart/checkout.

Product Data:

Series:
  • SCFF Series
Shape:

Straight
Features:
  • SCFF Series Screw Connect Flat Face Couplers prevent fluid loss during disconnection and allow minimal inclusion of contaminants during connection.
  • The screw connection strengthens the coupler and allows connection and disconnection with residual pressure in the circuit.
  • They have nitrile seals and are zinc nickel plated for higher corrosion resistance.
  • Zinc Nickel Plating
Temperature:
  • -40°F (-40°C) to 223°F (106°C).
Applications:
  • Industrial
  • Agriculture
  • Mining
  • Leak Free Environments
  • High Pressure Pulse
  • Hammer Circuits
Part Number Body
Size		 Body
Size
(ISO)		 Coupler
Gender		 Thread
Size		 Working
Pressure		 Coupled
Burst		 Female
Burst		 Male
Burst		 "A"
Length		 "B"
Length		 "C"
Length
QC-SCFF12-F-08N 1/2" 12 Female 1/2-14 NPT 7975 PSI 20300 PSI 14500 PSI 20300 PSI 6.0" 3.3" -
QC-SCFF12-M-08N 1/2" 12 Male 1/2-14 NPT 7975 PSI 20300 PSI 14500 PSI 20300 PSI 6.0" - 3.3"

QC-SCFF12-F-12S 1/2" 12 Female 1-1/16x12 SAE 7975 PSI 20300 PSI 14500 PSI 20300 PSI 6.0" 3.3" -
QC-SCFF12-M-12S 1/2" 12 Male 1-1/16x12 SAE 7975 PSI 20300 PSI 14500 PSI 20300 PSI 6.0" - 3.3"

QC-SCFF19-F-12N 3/4" 19 Female 3/4-14 NPT 7250 PSI 20300 PSI 15225 PSI 20300 PSI 7.6" 4.0" -
QC-SCFF19-M-12N 3/4" 19 Male 3/4-14 NPT 7250 PSI 20300 PSI 15225 PSI 20300 PSI 7.6" - 4.5"

QC-SCFF19-F-12S 3/4" 19 Female 1-1/16x12 SAE 7250 PSI 20300 PSI 15225 PSI 20300 PSI 7.6" 4.0" -
QC-SCFF19-M-12S 3/4" 19 Male 1-1/16x12 SAE 7250 PSI 20300 PSI 15225 PSI 20300 PSI 7.6" - 4.5"

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
