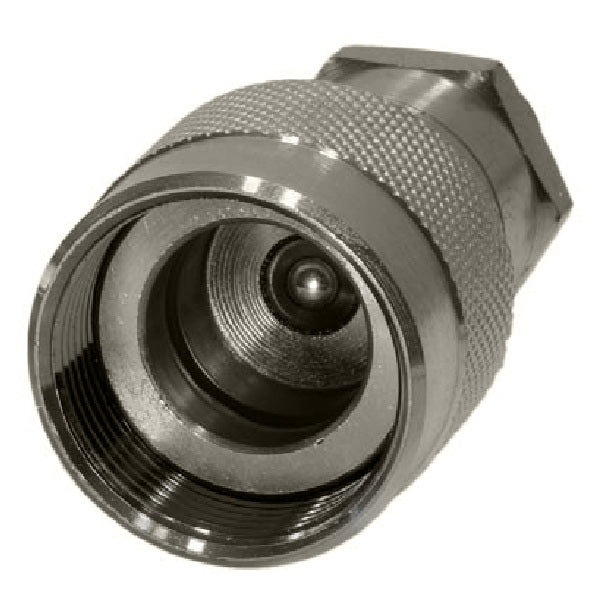

QC-SCB06-F-04N by Couplamatic | Hydraulic Quick Coupler | SCB Screw to Connect Ball | 1/4" Body Size x 1/4-18 Female NPT | Socket | Zinc Plated
Buy more, save moreDiscounts applied in cart/checkout.
Hydraulic Quick Coupler
SCB Series Screw to Connect Ball Quick Coupler
ISO 14540 screw-to-connect ball couplers for high pressure work — torque wrenches, jacks and hammer circuits.
1
What are the main product features?
- Designed for high pressure applications.
- SCB Series can be connected with low residual pressure and the screw connect design eliminates brinelling.
- Order the halves you need — male and female bodies are listed separately in the chart below.
- Dimensions given for installation — "A", "B" and "C" lengths are in the chart so the coupler can be checked against the space available.
2
What is this coupler used for?
- High Pressure Applications
- Industrial
- Torque Wrenches
- Agriculture
- Hydraulic Jacks
3
What are the key specifications?
Standard
ISO 14540
Seals
Nitrile and polyurethane
Plating
Zinc
Temperature
-40°F (-40°C) to 223°F (106°C)
4
Which sizes and configurations are available?
| Part Number | Body Size |
Body Size (ISO) |
Coupler Gender |
Thread Size |
Working Pressure |
Coupled Burst |
Female Burst |
Male Burst |
"A" Length | "B" Length | "C" Length |
|---|---|---|---|---|---|---|---|---|---|---|---|
| QC-SCB06-F-04N | 1/4" | 06 | Female | 1/4-18 NPT | 10440 PSI | 31320 PSI | 20300 PSI | 20880 PSI | 2.9" | 2.4" | — |
| QC-SCB06-M-04N | 1/4" | 06 | Male | 1/4-18 NPT | 10440 PSI | 31320 PSI | 20300 PSI | 20880 PSI | 2.9" | — | 1.3" |
| — | |||||||||||
| QC-SCB10-F-06N | 3/8" | 10 | Female | 3/8-18 NPT | 10440 PSI | 31320 PSI | 20300 PSI | 20880 PSI | 3.3" | 2.9" | — |
| QC-SCB10-M-06N | 3/8" | 10 | Male | 3/8-18 NPT | 10440 PSI | 31320 PSI | 20300 PSI | 20880 PSI | 3.3" | — | 1.4" |
Male and female halves are sold separately. Confirm the body size, ISO body size and thread size match the mating half already on the machine before ordering.
