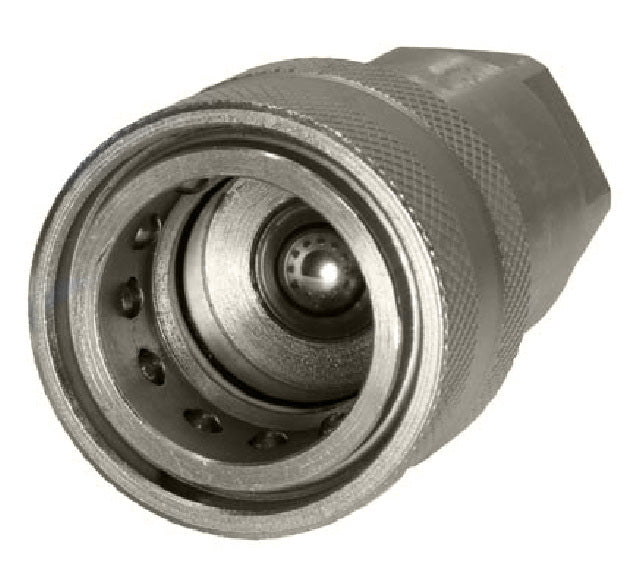

QC-AGBL12-F-08S by Couplamatic | Hydraulic Quick Coupler | AGBL Series | 1/2" Body Size x 3/4-16 Female SAE | Socket | Zinc Plated
Buy more, save moreDiscounts applied in cart/checkout.
Hydraulic Quick Coupler
AGBL Series Ag Ball Style Quick Coupler
Ball-style agricultural quick couplers built to ISO 5675, for tractor and implement remotes.
1
What are the main product features?
- High quality ball style coupler with nitrile seals.
- Order the halves you need — male and female bodies are listed separately in the chart below.
- Dimensions given for installation — "A", "B" and "C" lengths are in the chart so the coupler can be checked against the space available.
2
What is this coupler used for?
- Industrial
- Agriculture
- Mobile
3
What are the key specifications?
Standard
ISO 5675 (1/2" only)
Seals
Nitrile
Plating
Zinc
Temperature
-40°F (-40°C) to 223°F (106°C)
4
Which sizes and configurations are available?
| Part Number | Body Size |
Body Size (ISO) |
Coupler Gender |
Thread Size |
Working Pressure |
Coupled Burst |
Female Burst |
Male Burst |
"A" Length | "B" Length | "C" Length |
|---|---|---|---|---|---|---|---|---|---|---|---|
| QC-AGBL12-F-08N | 1/2" | 12 | Female | 1/2-14 NPT | 3987 PSI | 18125 PSI | 17400 PSI | 17400 PSI | 3.5" | 2.6" | — |
| QC-AGBL12-M-08N | 1/2" | 12 | Male | 1/2-14 NPTF | 3987 PSI | 18125 PSI | 17400 PSI | 17400 PSI | 3.5" | — | 1.7" |
| — | |||||||||||
| QC-AGBL12-F-08S | 1/2" | 12 | Female | 3/4-16 SAE | 3987 PSI | 18125 PSI | 17400 PSI | 17400 PSI | 3.5" | 2.6" | — |
| QC-AGBL12-M-08S | 1/2" | 12 | Male | 3/4-16 SAE | 3987 PSI | 18125 PSI | 17400 PSI | 17400 PSI | 3.5" | — | 1.7" |
Male and female halves are sold separately. Confirm the body size, ISO body size and thread size match the mating half already on the machine before ordering.
Additional Product Data:
Series:
Shape:
Straight
