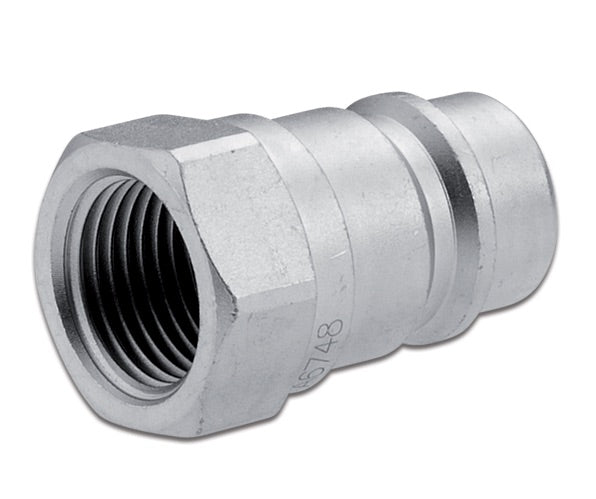

QAM-2424-FNPR ARGUS by Kuriyama | Hydraulic Quick Disconnect Coupling | QA-ISO-A | Poppet Standard ISO 7241 A | -24 ISO 7241 A x -24 Female NPTF | Plug | Galvanized Steel

QAM-2424-FNPR ARGUS by Kuriyama | Hydraulic Quick Disconnect Coupling | QA-ISO-A | Poppet Standard ISO 7241 A | -24 ISO 7241 A x -24 Female NPTF | Plug | Galvanized Steel

Sale price$67.95

Kuriyama of America Inc.
ARGUS | Hydraulic Quick Disconnect Plug| QA-ISO-A | Standard ISO 7241 A - Poppet | Female NPTF

ARGUS ISO 7241-1 series "A" quick release couplings are used for quick coupling and uncoupling of hydraulic lines.

Suitable for liquid lines with mineral oil-based hydraulic fluids to DIN 51524 T1+T2.
Buy More, Save More!
Quantity Price Each
10–39 $63.87
40–79 $57.76
80+ $50.96
Discounts applied in cart/checkout.

Product Data:

Brand:
  • ARGUS
Series:
  • QA-ISO-A
Shape:

Straight
Features:
  • ARGUS ISO 7241-1 series "A" quick release couplings are used for quick coupling and uncoupling of hydraulic lines.
  • During the coupling action in zero or lowpressure ranges, valves that release or block the flow are automatically activated.
  • The QA-ISO-A quick release coupling, formed by the coupling plug and the coupling socket, is connected by pushing on a sleeve. This guarantees a flush connection between the two coupling halves.
Construction:
  • Galvanized steel with hardened parts subject to wear.
  • NBR O-rings.
  • Thermoplastic dust cap and dust plug.
  • ARGUS couplings feature a chrome-III zinc plating with a long lasting resistance to oxidation (TOP COAT, patented).
Application:
  • Suitable for liquid lines with mineral oil-based hydraulic fluids to din 51524 T1+T2.
Specifications:
  • ISO 7241 A
Temperature range:
  • -4°F (-20°C) to +212°F (+100°C)
Note:
  • Rated flow / pressure drop compliant with ISO 7241-1 standard.
Poppet Standard ISO 7241 A | Rated Pressure Chart
Dash Size ID Size Working Pressure PSI Burst Pressure PSI
-04 1/4" 5075 PSI 20300 PSI
-06 3/8" 4568 PSI 18270 PSI
-08 1/2" 3915 PSI 15660 PSI
-12 3/4" 3625 PSI 14500 PSI
-16 1" 2900 PSI 11600 PSI
-24 1-1/2" 2320 PSI 9280 PSI
Plug | QA-ISO-A | Poppet Standard ISO 7241 A
Part
Number		 Coupling
Type		 ID
Size		 Threads D1 CH L1 L Dust Cap
Dash Size mm in mm mm mm mm
QAM-0404-FNPR Plug/Male 04 6.0mm 1/4" 1/4-18 Female NPTF 11.8mm 19.0mm 38.5mm 74.20mm QAC-04
QAM-0606-FNPR Plug/Male 06 10.0mm 3/8" 3/8-18 Female NPTF 17.3mm 22.0mm 39.0mm 78.50mm QAC-06
QAM-0808-FNPR Plug/Male 08 13.0mm 1/2" 1/2-14 Female NPTF 20.5mm 27.0mm 44.0mm 88.20mm QAC-08
QAM-1212-FNPR Plug/Male 12 19.0mm 3/4" 3/4-14 Female NPTF 29.0mm 34.0mm 55.0mm 110.40mm QAC-12
QAM-1616-FNPR Plug/Male 16 25.0mm 1" 1-11-1/2 Female NPTF 34.3mm 41.0mm 66.0mm 132.90mm QAC-16
QAM-2424-FNPR Plug/Male 24 38.0mm 1-1/2" 1-1/2-11-1/2 Female NPTF 55.0mm 60.0mm 83.5mm 167.0mm -
Socket | QA-ISO-A | Poppet Standard ISO 7241 A
Part
Number		 Coupling
Type		 ID
Size		 Threads D1 CH L1 L Dust Plug
Dash Size mm in mm mm mm mm
QAF-0404-FNPR Socket/Female 04 6.0mm 1/4" 1/4-18 Female NPTF 26.0mm 19.0mm 50.0mm 74.20mm QAP-04
QAF-0606-FNPR Socket/Female 06 10.0mm 3/8" 3/8-18 Female NPTF 31.5mm 22.0mm 57.1mm 78.50mm QAP-06
QAF-0808-FNPR Socket/Female 08 13.0mm 1/2" 1/2-14 Female NPTF 38.5mm 27.0mm 66.0mm 88.20mm QAP-08
QAF-1212-FNPR Socket/Female 12 19.0mm 3/4" 3/4-14 Female NPTF 48.0mm 34.0mm 82.5mm 110.40mm QAP-12
QAF-1616-FNPR Socket/Female 16 25.0mm 1" 1-11-1/2 Female NPTF 56.0mm 41.0mm 100.0mm 132.90mm QAP-16
QAF-2424-FNPR Socket/Female 24 38.0mm 1-1/2" 1-1/2-11-1/2 Female NPTF 84.5mm 60.0mm 133.0mm 167.0mm -
