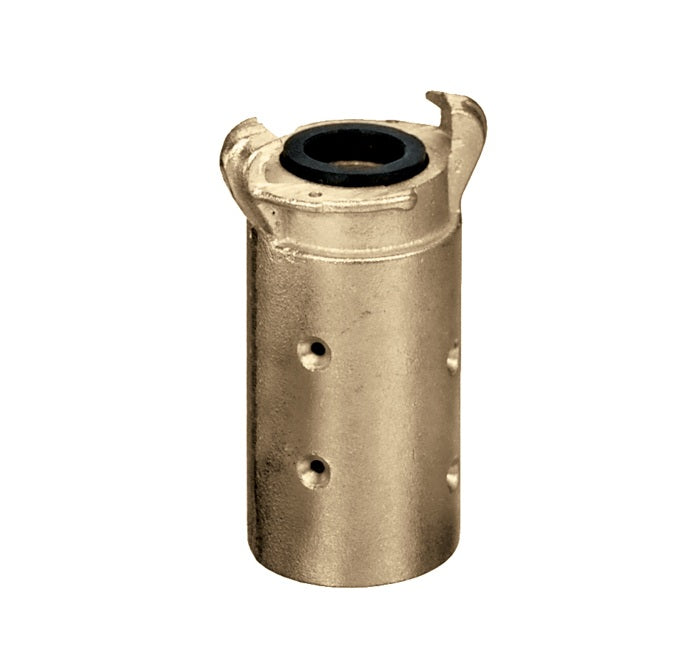

Q-BR5 by Kuriyama | Q-BR Series | Sandblast Hose Coupling | Two Lug | Full Flow | 1-1/2" Hose ID | 2-3/8" Hose OD | Brass
Kuriyama of America Inc.
Q-AL Series | Sandblast Hose Coupling | Two Lug | Brass
Couplings designed specifically for sandblast hoses.
Two claw couple design for quick connection.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $104.05 |
| 20–59 | $94.09 |
| 60+ | $83.02 |
Discounts applied in cart/checkout.
Product Data:
Series:
MAWP:
175
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Specifications and Approvals:
What are the Features?
- Couplings designed specifically for sandblast hoses.
- Two claw couple design for quick connection.
- Full flow design removes air restrictions present in the standard design, and increases PSI available to the nozzle.
- Sheet metal screws supplied with each.
What are the Materials?
- Brass – ASTM B584, Grade C85700.
| Part Number | Hose ID |
Hose OD |
PSI Rating at 70°F |
Gasket | Flow Size |
Weight Each (lbs) |
|---|---|---|---|---|---|---|
| Q-BR1 | 3/4" | 1-1/2" | 175 PSI | SBG | Standard | 1.06 lbs |
| Q-BR2 | 1", 1-1/4" | 1-7/8" | 175 PSI | SBG | Standard | 1.12 lbs |
| Q-BR3 | 1-1/4" | 2-5/32" | 175 PSI | SBG | Standard | 1.94 lbs |
| Q-BR4 | 1-1/2" | 2-3/8" | 175 PSI | SBG | Standard | 2.64 lbs |
| Q-BR5 | 1-1/2" | 2-3/8" | 175 PSI | SRG-2 | Full | 3.50 lbs |
| Q-BR6 | 2" | 2-7/8" | 175 PSI | SRG-2 | Full | 4.75 lbs |
