PW02-6x6 by Couplamatic | Grip Crimp Pressure Wash Coupling | 3/8" Hose ID x 3/8-18 Thread Size Female Solid NPTF | Straight | Trivalent Zinc Plating

PW02-6x6 by Couplamatic | Grip Crimp Pressure Wash Coupling | 3/8" Hose ID x 3/8-18 Thread Size Female Solid NPTF | Straight | Trivalent Zinc Plating

Minimum Order Quantity: 5 Units

Sale price$7.11
Buy more, save moreDiscounts applied in cart/checkout.
Grip Crimp — Pressure Wash

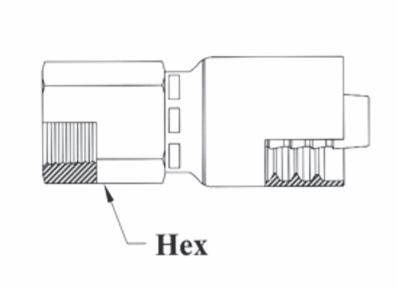

PW02 Grip Crimp Pressure Wash Coupling — NPTF Female Solid, Straight

PW02 is the NPTF Female Solid, Straight configuration of the Grip Crimp Pressure Wash system, terminating 1/4" through 3/8" pressure wash hose.

1

What are the main product features?
  • Grip-Crimp pressure wash couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
  • Sized for pressure wash hose — hose ends for 1/4" through 3/8" pressure wash hose.
  • Bite to the wire — the shell grips the hose reinforcement for a permanent termination.
  • 50 piece minimum purchase — these couplings are sold in 50 piece increments.
2

Which sizes are available?
Part Number Hose ID Pipe Size Thread Size Hex Size
GC02-4x4 1/4" 1/4" 1/4-18 3/4"
PW02-6x6 3/8" 3/8" 3/8-18 7/8"
i
Swivel for installation purposes only. Leakage may occur at low pressure.

Additional Product Data:

Series:
  • Pressure Wash Series
Shape:

Straight

Ends Configuration:
  • 3/8in Female NPTF
  • 3/8in Hose Barb

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
