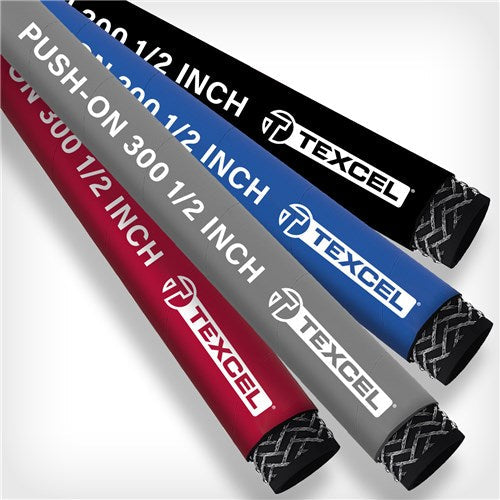

PUSH-10-250-BLUE by Texcel | TEX-PUSH-ON 300 Series | Push-On Hose | 5/8" Hose ID | 300 PSI | Blue | 250ft Length
Texcel
TEX-PUSH-ON 300 Series | 300psi Push-On Hose
Package Quantity: 250 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $953.96 |
| 8–14 | $913.37 |
| 15+ | $811.88 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | Low pressure braided hose for quick and easy insertion of push-on fittings with no special crimping tools required. Its internal polyester reinforcement design allows for excellent coupling retention. Tube handles oil-laden air, lubricating oils, mild alkalis or caustic solutions, fuel oil, and other petroleumbased products. | Tube: | Black, NBR (ARPM Class A) |
| Cover: | Black, Red, Blue NBR/PVC (ARPM Class A) | Reinforcement: | Reinforced braided polyester cords |
| Safety Factor: | 4:1 | Temperature: | -40°F to +212°F (-40°C to +100°C) |
| Branding: | TEXCEL® TEX-PUSH-ON | Packaging: | 1pc Reel |
| Part Number | Dash | Hose ID (Inch) | Hose ID (Dn) | Hose OD (Inch) | Hose OD (mm) | Working Pressure (psi) | Burst Pressure (psi) | Weight (lbs/ft) |
|---|---|---|---|---|---|---|---|---|
| PUSH-4-250 | 4 | 1/4" | 6 | 1/2" | 13 | 300 | 1200 | 0.10 lbs |
| PUSH-6-250 | 6 | 3/8" | 10 | 33/50" | 17 | 300 | 1200 | 0.14 lbs |
| PUSH-8-250 | 8 | 1/2" | 12 | 81/100" | 21 | 300 | 1200 | 0.19 lbs |
| PUSH-10-250 | 10 | 5/8" | 16 | 47/50" | 24 | 300 | 1200 | 0.22 lbs |
| PUSH-12-250 | 12 | 3/4" | 19 | 1-9/100" | 28 | 300 | 1200 | 0.28 lbs |
| PUSH-16-250 | 16 | 1" | 25 | 1-2/5" | 35.5 | 250 | 1000 | 0.46 lbs |
| PUSH-4-250-BLACK | 4 | 1/4" | 6 | 1/2" | 13 | 300 | 1200 | 0.10 lbs |
| PUSH-6-250-BLACK | 6 | 3/8" | 10 | 33/50" | 17 | 300 | 1200 | 0.14 lbs |
| PUSH-8-250-BLACK | 8 | 1/2" | 12 | 81/100" | 21 | 300 | 1200 | 0.19 lbs |
| PUSH-10-250-BLACK | 10 | 5/8" | 16 | 47/50" | 24 | 300 | 1200 | 0.22 lbs |
| PUSH-12-250-BLACK | 12 | 3/4" | 19 | 1-9/100" | 28 | 300 | 1200 | 0.28 lbs |
| PUSH-16-250-BLACK | 16 | 1" | 25 | 1-2/5" | 35.5 | 250 | 1000 | 0.46 lbs |
| PUSH-4-250-RED | 4 | 1/4" | 6 | 1/2" | 13 | 300 | 1200 | 0.10 lbs |
| PUSH-6-250-RED | 6 | 3/8" | 10 | 33/50" | 17 | 300 | 1200 | 0.14 lbs |
| PUSH-8-250-RED | 8 | 1/2" | 12 | 81/100" | 21 | 300 | 1200 | 0.19 lbs |
| PUSH-10-250-RED | 10 | 5/8" | 16 | 47/50" | 24 | 300 | 1200 | 0.22 lbs |
| PUSH-12-250-RED | 12 | 3/4" | 19 | 1-9/100" | 28 | 300 | 1200 | 0.28 lbs |
| PUSH-16-250-RED | 16 | 1" | 25 | 1-2/5" | 35.5 | 250 | 1000 | 0.46 lbs |
| PUSH-4-250-BLUE | 4 | 1/4" | 6 | 1/2" | 13 | 300 | 1200 | 0.10 lbs |
| PUSH-6-250-BLUE | 6 | 3/8" | 10 | 33/50" | 17 | 300 | 1200 | 0.14 lbs |
| PUSH-8-250-BLUE | 8 | 1/2" | 12 | 81/100" | 21 | 300 | 1200 | 0.19 lbs |
| PUSH-10-250-BLUE | 10 | 5/8" | 16 | 47/50" | 24 | 300 | 1200 | 0.22 lbs |
| PUSH-12-250-BLUE | 12 | 3/4" | 19 | 1-9/100" | 28 | 300 | 1200 | 0.28 lbs |
| PUSH-16-250-BLUE | 16 | 1" | 25 | 1-2/5" | 35.5 | 250 | 1000 | 0.46 lbs |
