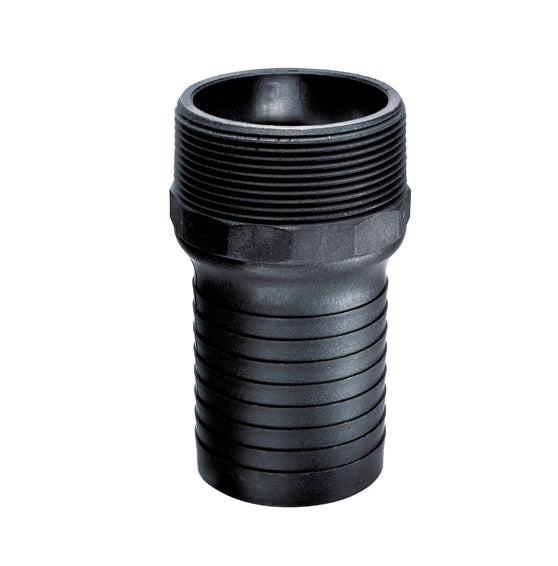

PPN300 by Kuriyama | PPN Series | Combination Hose Nipple | 3" Male NPT x 3" Hose Barb | Polypropylene

PPN300 by Kuriyama | PPN Series | Combination Hose Nipple | 3" Male NPT x 3" Hose Barb | Polypropylene

Sale price$13.36

Kuriyama of America Inc.
Combination Hose Nipple | PPN Series | Male NPT x Hose Barb | Polypropylene

Versatile hose connectors designed to connect hose and pipes.

Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
Buy More, Save More!
Quantity Price Each
10–39 $12.56
40–79 $11.36
80+ $10.02
Discounts applied in cart/checkout.

What are the Features?

  • Versatile hose connectors designed to connect hose and pipes.
  • Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
  • Multi-serrated barb design allows for secure hose grip when properly clamped or crimped.

What are the Materials?

  • Glass filled polypropylene.
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
PPN050 1/2" 125 PSI 0.03 lbs
PPN075 3/4" 125 PSI 0.06 lbs
PPN100 1" 125 PSI 0.07 lbs
PPN125 1-1/4" 125 PSI 0.11 lbs
PPN150 1-1/2" 125 PSI 0.13 lbs
PPN200 2" 75 PSI 0.22 lbs
PPN300 3" 75 PSI 0.55 lbs

Product Data:

Series:
  • PPN Series
MAWP:

75

Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
