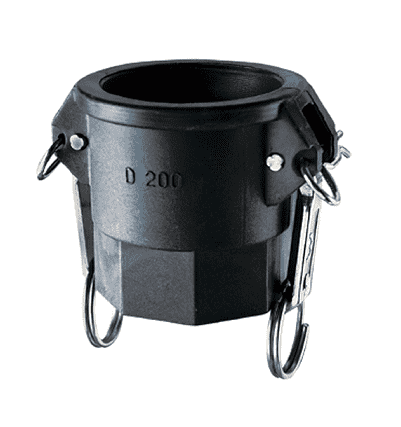

PPD400 by Kuriyama | Quick-Acting Coupling | Part D | 4" Female Coupler x 4" Female NPT | Polypropylene

PPD400 by Kuriyama | Quick-Acting Coupling | Part D | 4" Female Coupler x 4" Female NPT | Polypropylene

Sale price$46.44

Kuriyama Couplings™ - Quick-Acting Couplings - Part D - Female Coupler x Female NPT - Polypropylene

Buy More, Save More!
Quantity Price Each
10–39 $43.65
40–79 $39.47
80+ $34.83
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type D

Ends Configuration:
  • 4in Female Cam & Groove
  • 4in Female NPT
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Polypropylene material is glass-filled for added strength and durability.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • All 4" size female couplers are supplied with three locking handles to provide added stability.
Materials:
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • EPDM gaskets.
Part Number Size Weight (Lbs.)
PPD050 1/2 x 1/2" 0.18 lbs
PPD075 3/4" x 3/4" 0.19 lbs.
PPD100 1" x 1" 0.25 lbs.
PPD125 1-1/4" x 1-1/4" 0.41 lbs.
PPD150 1-1/2" x 1-1/2" 0.53 lbs.
PPD200 2" x 2" 0.55 lbs.
PPD300 3" x 3" 1.17 lbs.
PPD400 4" x 4" 1.58 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
