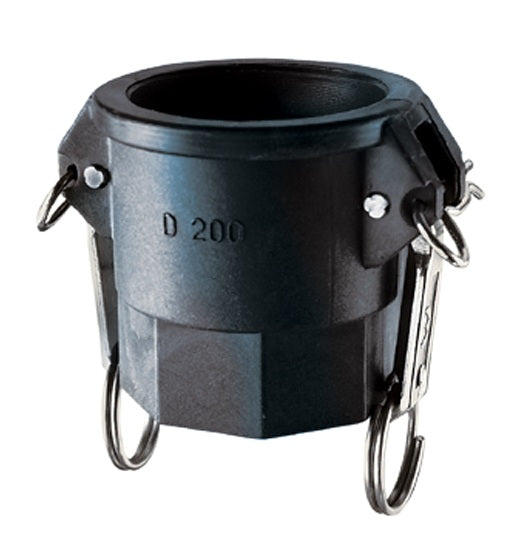

PPD300 by Kuriyama | PPD Series | Part D | Cam & Groove Adapter | 3" Coupler x 3" Female NPT | Polypropylene

PPD300 by Kuriyama | PPD Series | Part D | Cam & Groove Adapter | 3" Coupler x 3" Female NPT | Polypropylene

Sale price$27.89

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | PPD Series | Part D | Coupler x Female NPT | Polypropylene

Kuriyama Camlock Couplings are intended for use in many industrial applications.

Cost-effective, high-performance alternative to metal fittings in industrial and agricultural markets.
Buy More, Save More!
Quantity Price Each
10–39 $26.22
40–79 $23.71
80+ $20.92
Discounts applied in cart/checkout.

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial and agricultural applications.
  • Polypropylene is a cost-effective, high-performance alternative to metal options. Despite lacking the strength of stainless steel or aluminum.
  • Offers excellent corrosion resistance and impressive durability.

What are the Features?

  • Polypropylene material is glass filled for added strength and durability.
  • Extremely lightweight yet strong.
  • Precision molded to ensure consistency in form and function.
  • Economical when compared with other materials.

What are the Materials?

  • Glass filled Polypropylene.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • Locking feature using safety clips to prevent disconnection during use.
  • Supplied 304 stainless steel handles, handle pins, pull rings, and safety clips.
  • All 4" size female couplers supplied with three handles to provide added stability.
  • EPDM gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
PPD050 1/2" 100 PSI 0.18 lbs
PPD075 3/4" 100 PSI 0.19 lbs
PPD100 1" 100 PSI 0.25 lbs
PPD125 1-1/4" 100 PSI 0.41 lbs
PPD150 1-1/2" 100 PSI 0.53 lbs
PPD200 2" 100 PSI 0.55 lbs
PPD300 3" 50 PSI 1.17 lbs
PPD400 4" 50 PSI 1.58 lbs

Product Data:

Series:
  • PPD Series
MAWP:

50

Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
