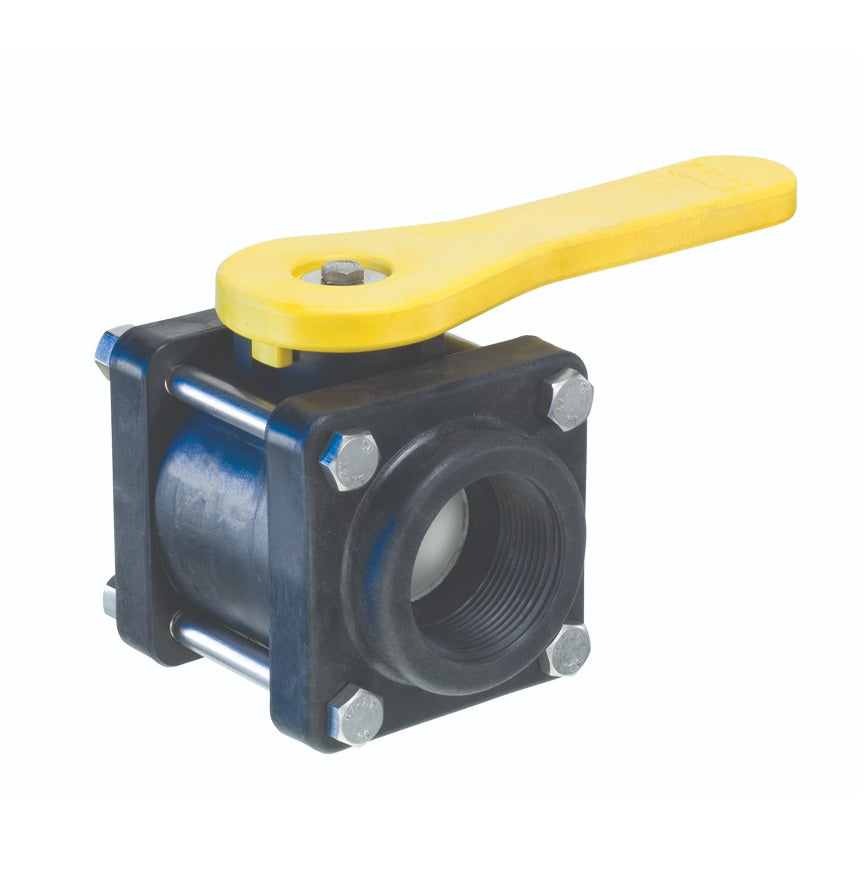

PPBV100 by Kuriyama | PPBV Series | Ball Valve | 1" Female NPT | 4-Bolt | Polypropylene
Buy more, save moreDiscounts applied in cart/checkout.
What are the Features?
- Polypropylene material is glass filled for added strength and durability.
- Precision molded to ensure consistency in form and function.
- Full Port design allows free flow of material.
What are the Materials?
- Glass filled polypropylene.
- Teflon™ seals.
- Viton® O Ring stems and seals.
- Stainless steel nuts and bolts.
Viton® is a registered trademark of The Chemours Company FC, LLC.
Teflon® is a registered trademark of The Chemours Company FC, LLC.
| Part Number | Size (in) |
Bolt Count | Threads | PSI Rating at 70°F |
Weight Each (lbs) |
|---|---|---|---|---|---|
| PPBV050 | 1/2" | 4 | Female NPT | 150 PSI | 0.88 lbs |
| PPBV075 | 3/4" | 4 | Female NPT | 150 PSI | 0.85 lbs |
| PPBV100 | 1" | 4 | Female NPT | 150 PSI | 1.16 lbs |
| PPBV125 | 1-1/4" | 4 | Female NPT | 150 PSI | 1.65 lbs |
| PPBV150 | 1-1/2" | 4 | Female NPT | 150 PSI | 1.67 lbs |
| PPBV200 | 2" | 6 | Female NPT | 100 | 3.71 lbs |
| PPBV300 | 3" | 6 | Female NPT | 100 | 6.60 lbs |
| PPBV400 | 4" | 6 | Female NPT | 100 | 9.90 lbs |
Additional Product Data:
Series:
MAWP:
150
Shape:
Straight
Ends Configuration:
Material(s):
