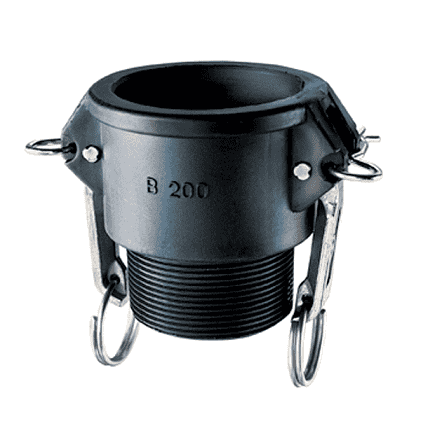

PPB075 by Kuriyama | Quick-Acting Coupling | Part B | 3/4" Female Coupler x 3/4" Male NPT | Polypropylene

PPB075 by Kuriyama | Quick-Acting Coupling | Part B | 3/4" Female Coupler x 3/4" Male NPT | Polypropylene

Sale price$11.47

Kuriyama Couplings™ - Quick-Acting Couplings - Part B - Female Coupler x Male NPT - 316 Polypropylene

In stock
Buy More, Save More!
Quantity Price Each
10–39 $10.78
40–79 $9.75
80+ $8.60
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type B

Ends Configuration:
  • 3/4in Female Cam & Groove
  • 3/4in Male NPT
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Material Handling, Irrigation, Fracking
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Polypropylene material is glass-filled for added strength and durability.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • All 4" size female couplers are supplied with three locking handles to provide added stability.
Materials:
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • EPDM gaskets.
Part Number Size Weight (Lbs.)
PPB050 1/2 x 1/2" 0.17 lbs
PPB075 3/4" x 3/4" 0.18 lbs.
PPB100 1" x 1" 0.26 lbs.
PPB125 1-1/4" x 1-1/4" 0.4 lbs.
PPB150 1-1/2" x 1-1/2" 0.47 lbs.
PPB200 2" x 2" 0.49 lbs.
PPB300 3" x 3" 1.17 lbs.
PPB400 4" x 4" 1.44 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
