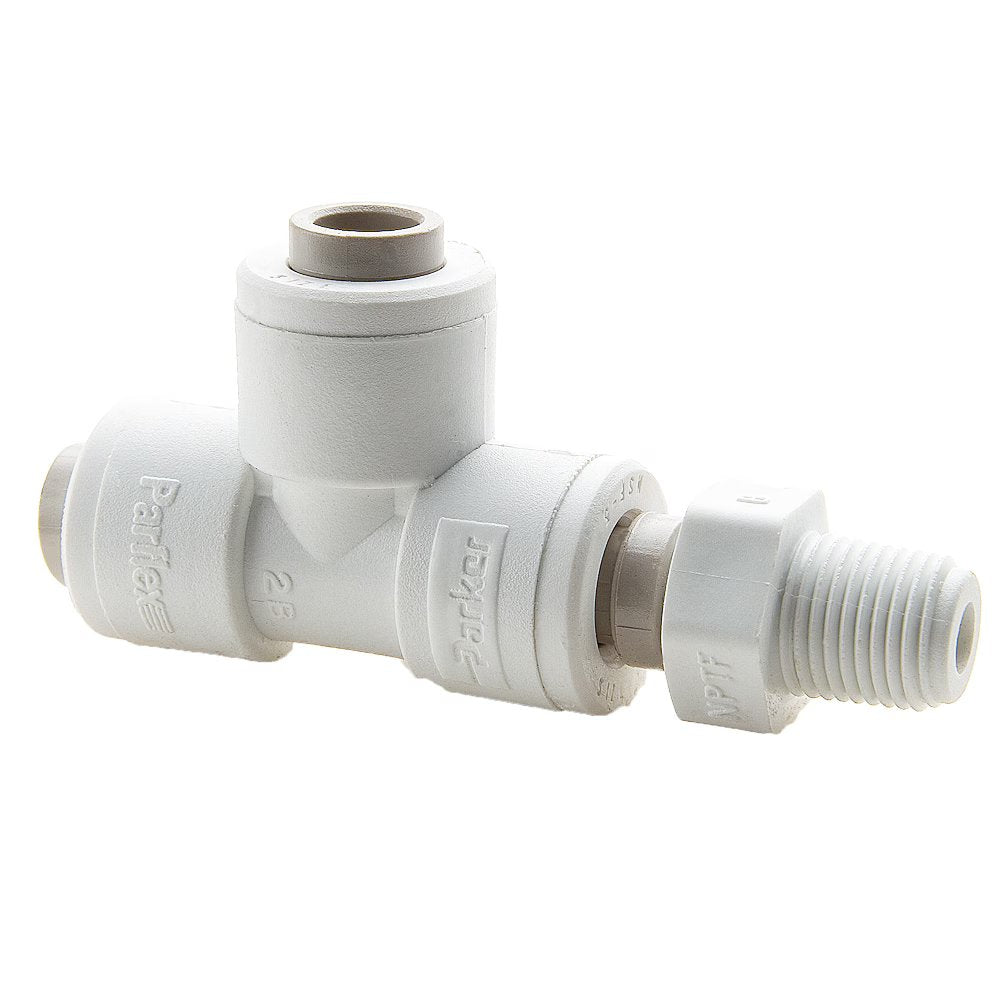

PP8MRS8 by Parker | TrueSeal™ Threaded Fittings | 1/2" Swivel Tube OD x 1/2" Male NPTF Thread | 3.32" Length | Tee | White | Polypropylene

PP8MRS8 by Parker | TrueSeal™ Threaded Fittings | 1/2" Swivel Tube OD x 1/2" Male NPTF Thread | 3.32" Length | Tee | White | Polypropylene

Sale price$14.70

by Parker Hannifin
TrueSeal™ Fittings:MRS - Male Run Tee Swivel
Buy More, Save More!
Quantity Price Each
20–39 $13.82
40–79 $12.50
80+ $11.03
Discounts applied in cart/checkout.

Product Data:

Brand:
  • TrueSeal™
Series:
  • MRS Series
Shape:

Tee
Product Features
  • Acetal and Black Polypropylene with EPDM seals and metal gripping collet standard
  • White Polypropylene with EPDM seals and plastic gripping collet standard
  • Black Kynar with Fluorocarbon (FKM) seals and black Kynar metal gripping collet standard
  • Gripping ring with stainless steel bite edge or engineered thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • Gray Acetal and Black Polypropylene NSF/ANSI/CAN 61
Markets & Applications
  • Food
  • Potable Water
  • Chemical
  • Filtration
  • Air
  • Water
  • Soft Drinks
  • Beer
  • Wine
  • Dyes
  • Vacuum
Pressure Range
  • Acetal and Kynar: 1/4", 5/16", 3/8" vacuum to 300 PSI (20.7 bar); 1/2" vacuum to 250 PSI (17.2 bar)
  • Polypropylene: 1/4", 3/8", 1/2" vacuum to 150 PSI (10.3 bar)
Temperature Range
  • Acetal: -20° to +180° F (-28.9° to +82.2° C)
  • Polypropylene: 0° to +225° F (-17.8° to +107.2° C)
  • Kynar: 0° to +275° F (-17.8° to +135° C)
Compatible Tubing
  • Polyethylene
  • Polypropylene**
  • Nylon**
  • Vinyl+
  • Fluoropolymer**
  • Polyurethane+
  • *Kynar®
Notes

* Registered trademark of The Arkema Group.
** Metal gripper required (-MG & -HBLK suffix).
+ Tube Support required.

Gray Acetal EPDM Seal Black PPL EPDM Seal White PPL EPDM Seal Black Kynar FKM Seal Nom. Tube O.D. NPTF Thread Size Hex (C) L M N Thru Hole Min. (D)
A4MRS2-MG - PP4MRS2 FB4MRS2-HBLK 1/4" 1/8" 9/16" 1.55" .81" .85" .175"
A4MRS4-MG PPB4MRS4-MG PP4MRS4 FB4MRS4-HBLK 1/4" 1/4" 11/16" 1.67" .81" .85" .175"
A5MRS2-MG - - - 5/16" 1/8" 9/16" 1.78" 1.02" 1.02" .188"
A5MRS4-MG - - - 5/16" 1/4" 11/16" 1.90" 1.02" 1.02" .188"
A5MRS6-MG - - - 5/16" 3/8" 13/16" 1.90" 1.02" 1.02" .188"
A6MRS4-MG PPB6MRS4-MG PP6MRS4 FB6MRS4-HBLK 3/8" 1/4" 13/16" 1.90" 1.02" 1.02" .250"
A6MRS6-MG PPB6MRS6-MG PP6MRS6 FB6MRS6-HBLK 3/8" 3/8" 13/16" 1.90" 1.02" 1.02" .250"
A8MRS4-MG - - - 1/2" 1/4" 13/16" 2.10" 1.20" 1.20" .240"
A8MRS6-MG - PP8MRS6 - 1/2" 3/8" 13/16" 2.10" 1.20" 1.20" .375"
A8MRS8-MG - PP8MRS8 - 1/2" 1/2" 1" 2.32" 1.20" 1.20" .375"
