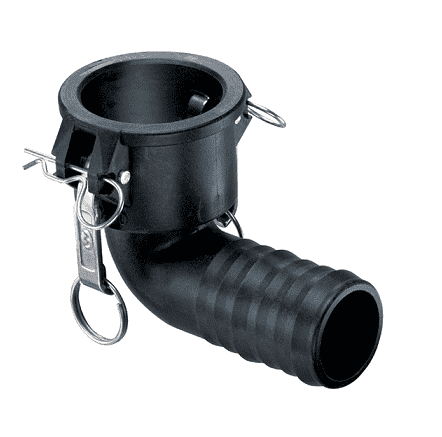

PP200C90 by Kuriyama | Quick-Acting Special Application Coupling | Part C | 2" Coupler x 2" Hose Shank | 90° Elbow | Polypropylene

PP200C90 by Kuriyama | Quick-Acting Special Application Coupling | Part C | 2" Coupler x 2" Hose Shank | 90° Elbow | Polypropylene

Sale price$26.37

Kuriyama Couplings™ - Quick-Acting Special Application Couplings - Part C - 90 deg. Coupler x Hose Shank - Polypropylene

Buy More, Save More!
Quantity Price Each
10–39 $24.79
40–79 $22.41
80+ $19.78
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Cam & Groove Type:

Type C

Ends Configuration:
  • 2in Female Cam & Groove
  • 2in Hose Barb
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Polypropylene material is glass-filled for added strength and durability.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • All 4" size female couplers are supplied with three locking handles to provide added stability.
Materials:
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • EPDM gaskets
Part Number Coupler CHose Shank Weight (Lbs.)
PP150C90 1-1/2" 1-1/2" 0.56 lbs
PP200C90 2" 2" 0.73 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
