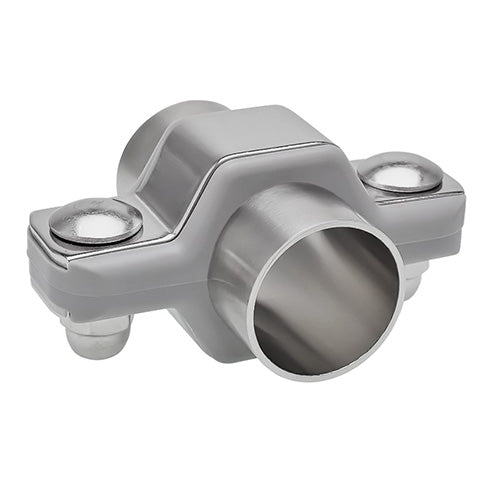

PHWM-050T-304SLN by ACL Hygienic | Process Hex Weld Mount w/ Lock Nut | 1/2" Tube Size | Gray | 304 Stainless Steel

PHWM-050T-304SLN by ACL Hygienic | Process Hex Weld Mount w/ Lock Nut | 1/2" Tube Size | Gray | 304 Stainless Steel

Sale price$18.93

ACL Hygienic
Sanitary, Washdown, and Pipe Hanging Systems:Pipe Hanging Systems - Process Hex Hanger Weld Mount

Buy More, Save More!
Quantity Price Each
10–39 $17.79
40–79 $16.09
80+ $14.20
Discounts applied in cart/checkout.

Product Data:

Shape:

["Straight"]

Material(s):
  • 304 Stainless Steel
Applications:
  • Cleanrooms and mechanical areas; not limited to: biotech, pharmaceutical, food processing, beverage, dairy, cosmetic, chemical, water treatment, and semiconductor industries.
  • Low flow & low pressure systems with moderate vibration: WFI, SIP, CIP, process, utility & instrument lines, WFI, SIP, CIP, process, utilities & instrument lines
Sizes:
  • Support Range: 1/4" – 6" Tube and 1/2" – 6" Pipe
Features:
  • ZERO PUDDLE Silicones inserts raised geometry facilitates drainage of liquids on vertical/riser lines creating maintenance uptime
Materials:
  • 304 and 316 stainless steels
  • ZERO PUDDLE inserts are FDA grade silicone rubber
Specifications:
  • Intermittent temperatures from -40F to 320F
  • Continues temperatures from -20F to 302F
Benefits:
  • Drainable and Cleanable
  • There are no exposed threads or openings in hardware plates
  • Carriage bolts lock into Hardware Frame's square hole allowing installer to use a single wrench
  • The antiquated Entrapping Hex Hanger requires two wrenches, increasing safety concerns and installation time
  • Carriage bolts are reversible, so rounded drainable surface is always on the hangers topside
  • Hanger threads match MSS 69 rod OD requirements
  • Silicone inserts are resistant to high and low temperatures
Process Hex Hanger Weld Mount: Mounting rod is welded to PHH’s frame
Part Number
w/ Acorn Nut		 Part Number
w/ Lock Nut		 Tube Size Line OD H L W CL
PHWM-050T-304SAN PHWM-050T-304SLN 1/2" 0.50" 1.15" 2.80" 1.10" 0.575"
PHWM-075T-304SAN PHWM-075T-304SLN 3/4" 0.75" 1.15" 2.80" 1.10" 0.575"
PHWM-100T-304SAN PHWM-100T-304SLN 1" 1" 1.45" 3" 1.10" 0.725"
PHWM-150T-304SAN PHWM-150T-304SLN 1-1/2" 1.50" 1.96" 4" 1.42" 0.981"
PHWM-200T-304SAN PHWM-200T-304SLN 2" 2" 2.5" 4.6" 1.42" 1.25"
PHWM-250T-304SAN PHWM-250T-304SLN 2-1/2" 2.50" 4" 5.1" 1.42" 4"
PHWM-300T-304SAN PHWM-300T-304SLN 3" 3" 3.50" 5.60" 1.42" 1.25"
PHWM-400T-304SAN PHWM-400T-304SLN 4" 4" 4.55" 6.75" 1.42" 2.275"
PHWM-600T-304SAN PHWM-600T-304SLN 6" 6" 6.29" 9.25" 1.42" 3.145"
