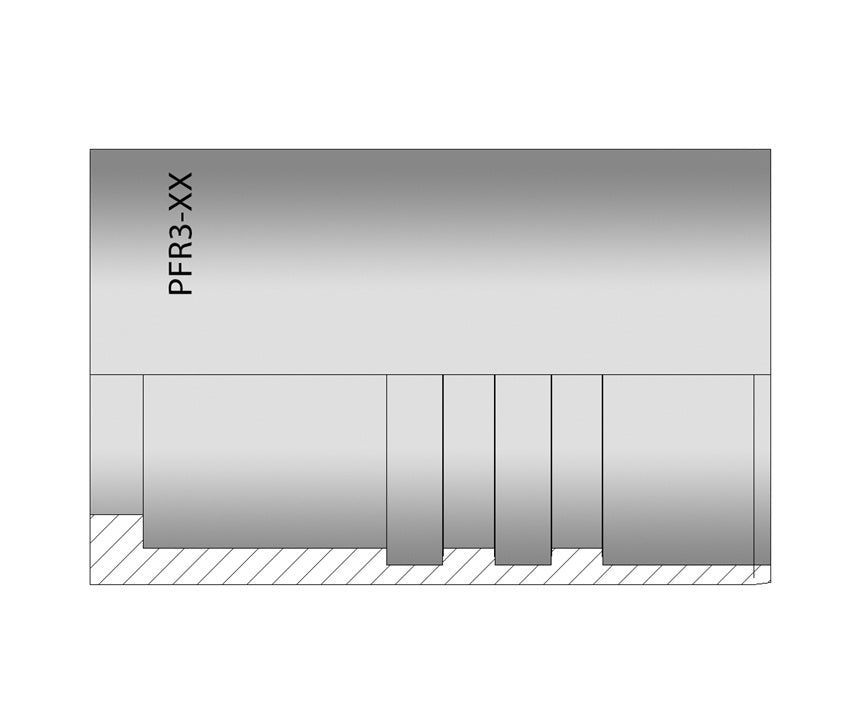

PFR3-08 Alfagomma Piranhaflex™ by Kuriyama | PFR3 Series | Two-Piece Non-Skive Ferrule | -08 Hose Dash Size | 1/2" Hose ID | Steel

PFR3-08 Alfagomma Piranhaflex™ by Kuriyama | PFR3 Series | Two-Piece Non-Skive Ferrule | -08 Hose Dash Size | 1/2" Hose ID | Steel

Minimum Order Quantity: 5 Units

Sale price$6.62

Kuriyama of America Inc.
Alfagomma Piranhaflex™ | PFR3 Series | Two-Piece Non-Skive Ferrule
Buy More, Save More!
Quantity Price Each
20–39 $6.22
40–79 $5.63
80+ $4.97
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
  • Piranhaflex
Series:
  • PFR3 Series
Material(s):
  • Steel
About PFR3-Series Ferrules:
  • Two piece non-skive ferrule for use with:
    • "A" insert on all PiranhaFlex™ hydraulic hoses, R7, R8 and R18 styles.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Dash
Size		 Hose ID Size B
OD		 L
Length		 Weight
(in.) (mm) (mm) (mm) lbs/each
PFR3-04 04 1/4" 6.4mm 14.75mm 28.9mm 0.03 lbs
PFR3-05 05 5/16" 7.9mm 17.4mm 28.8mm 0.04 lbs
PFR3-06 06 3/8" 9.5mm 19.0mm 28.8mm 0.04 lbs
PFR3-08 08 1/2" 12.7mm 23.7mm 36.3mm 0.06 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
