PFP354NC-08-250R Alfagomma Piranhaflex™ by Kuriyama | PFP354NC Series | SAE 100R7 | Thermoplastic Hydraulic Hose + Slither® Cover | Non-Conductive | 1/2" ID | 0.834" OD | 2000 PSI | 250ft Length
PFP354NC-08-250R Alfagomma Piranhaflex™ by Kuriyama | PFP354NC Series | SAE 100R7 | Thermoplastic Hydraulic Hose + Slither® Cover | Non-Conductive | 1/2" ID | 0.834" OD | 2000 PSI | 250ft Length

PFP354NC-08-250R Alfagomma Piranhaflex™ by Kuriyama | PFP354NC Series | SAE 100R7 | Thermoplastic Hydraulic Hose + Slither® Cover | Non-Conductive | 1/2" ID | 0.834" OD | 2000 PSI | 250ft Length

Sale price$931.55

Kuriyama of America Inc.
Alfagomma Piranhaflex | PFP354NC Series | SAE 100R7 | Non-Conductive Thermoplastic Hydraulic Hose + Slither® Cover

Made in the USA.

Suitable for industrial equipment and vehicles (construction, agriculture, material handling) in applications down to -65°F.


Package Quantity: 250 Feet

Buy More, Save More!
Quantity Price Each
5–14 $875.66
15–29 $791.82
30+ $698.66
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
  • Piranhaflex
Series:
  • PFP354NC Series
Color(s):
  • Orange
Application: Industrial equipment and vehicles (construction, agriculture, material handling, etc.).
Aerial equipment (PFP354NC only).
Hydraulic oil and lubrication lines.		 SAE Rating: SAE 100R7
Other Ratings: REACH (Non-Conductive ONLY), SAE J517 Tube: Nylon

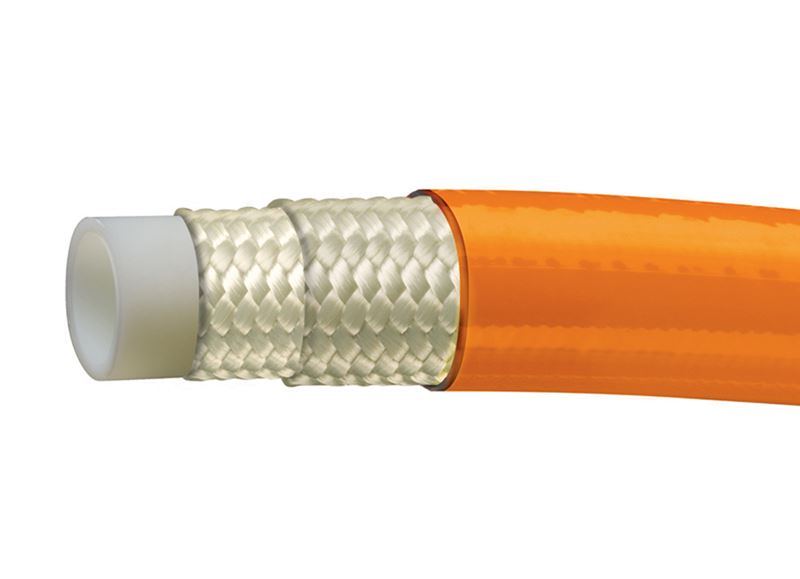

Reinforcement: Braided high tensile strength fibers Cover: Pin pricked, abrasion resistant polyurethane with Slither® additive. Available with conductive black cover (PFP354), or nonconductive "NC", orange cover (PFP354NC series).
Service Temperature Range: -65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids
Other Features:
  • Slither® Cover - Slick, Slither cover helps hose slide through tight spaces such as sheaves, pulleys and bundles. Especially helpful routing through long lengths of hose bundles on aerial equipment such as scissor lifts and bucket trucks.
  • Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces.
  • Lightweight - Approximately 37% lighter weight than similar rubber hoses.
  • Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications.
  • Pin Pricked Cover (PFP354 Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering.
  • NOTE: Boxed 250' reels or boxed 50' coils. Maximum two pieces per 250' reel, minimum 50' piece length.
PFP354 Series | Conductive
Part Number
250ft Reel		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PFP354-04-250R 1/4" 6.4mm 0.496" 12.6mm 2750 PSI 1.50" 38mm 0.06 lbs/ft
PFP354-06-250R 3/8" 9.7mm 0.650" 16.5mm 2250 PSI 2.00" 51mm 0.11 lbs/ft
PFP354-08-250R 1/2" 13.1mm 0.834" 21.2mm 2000 PSI 3.00" 76mm 0.16 lbs/ft
PFP354NC Series | Non-Conductive
Part Number
250ft Reel		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PFP354NC-04-250R 1/4" 6.4mm 0.496" 12.6mm 2750 PSI 1.50" 38mm 0.06 lbs/ft
PFP354NC-06-250R 3/8" 9.7mm 0.650" 16.5mm 2250 PSI 2.00" 51mm 0.11 lbs/ft
PFP354NC-08-250R 1/2" 13.1mm 0.834" 21.2mm 2000 PSI 3.00" 76mm 0.16 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
