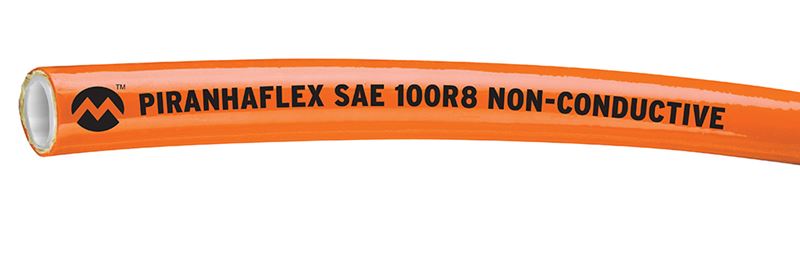

PF528NC-08-250R Alfagomma Piranhaflex™ by Kuriyama | PF528NC Series | SAE 100R8 | Kink Resistant Thermoplastic Hydraulic Hose | Non-Conductive | 1/2" ID | 0.935" OD | 3500 PSI | 250ft Length

PF528NC-08-250R Alfagomma Piranhaflex™ by Kuriyama | PF528NC Series | SAE 100R8 | Kink Resistant Thermoplastic Hydraulic Hose | Non-Conductive | 1/2" ID | 0.935" OD | 3500 PSI | 250ft Length

Sale price$1,342.17

Kuriyama of America Inc.
Alfagomma Piranhaflex | PF528NC Series | SAE 100R8 | Non-Conductive Kink Resistant Thermoplastic Hydraulic Hose

Made in the USA.

Suitable for High pressure hydraulic applications such as industrial equipment and vehicles (construction, agriculture, material handling) in applications down to -65°F.


Package Quantity: 250 Feet

Buy More, Save More!
Quantity Price Each
4–7 $1,261.64
8–14 $1,207.95
15+ $1,073.74
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
  • Piranhaflex
Series:
  • PF528NC Series
Color(s):
  • Orange
Application: High pressure hydraulic applications.
Industrial equipment and vehicles (construction, agriculture, material handling, etc.).
Aerial equipment (PF528NC only).
Hydraulic oil and lubrication lines.
Hydraulic tools.		 SAE Rating: SAE 100R8
Other Ratings: REACH (Non-Conductive ONLY) Tube: Nylon
Reinforcement: Braided, high tensile strength fibers Cover: Pin pricked, abrasion resistant polyurethane, in conductive black (PF528), or non-conductive orange (PF528NC) versions.
Service Temperature Range: -65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids
Other Features:
  • Kink Resistant Technology - Proprietary design shown to exhibit 50% better resistance to kink initiation, and 17% less force to bend, versus competitive 100R8 hose in comparison testing.
  • Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces.
  • Lightweight - Approximately 24% lighter weight than similar rubber hoses.
  • Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications.
  • Pin Pricked Cover (PF528 Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering.
  • NOTE: Boxed 250' long reels. Maximum two pieces per 250' reel, minimum 50' piece length.
PF528 Series | Conductive
Part Number
250ft Reel		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF528-03-250R 3/16" 4.8mm 0.475" 12.1mm 5000 PSI 0.75" 19mm 0.073 lbs/ft
PF528-04-250R 1/4" 6.5mm 0.584" 14.8mm 5000 PSI 2.00" 50mm 0.112 lbs/ft
PF528-06-250R 3/8" 9.7mm 0.750" 19.1mm 4000 PSI 2.50" 64mm 0.154 lbs/ft
PF528-08-250R 1/2" 12.9mm 0.935" 23.7mm 3500 PSI 3.50" 89mm 0.236 lbs/ft
PF528-12-250R 3/4" 19.1mm 1.220" 30.9mm 2250 PSI 4.50" 114mm 0.352 lbs/ft
PF528-16-250R 1" 25.4mm 1.620" 41.1mm 2000 PSI 6.00" 152mm 0.584 lbs/ft
PF528NC Series | Non-Conductive
Part Number
250ft Reel		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF528NC-03-250R 3/16" 4.8mm 0.475" 12.1mm 5000 PSI 0.75" 19mm 0.073 lbs/ft
PF528NC-04-250R 1/4" 6.5mm 0.584" 14.8mm 5000 PSI 2.00" 50mm 0.112 lbs/ft
PF528NC-06-250R 3/8" 9.7mm 0.750" 19.1mm 4000 PSI 2.50" 64mm 0.154 lbs/ft
PF528NC-08-250R 1/2" 12.9mm 0.935" 23.7mm 3500 PSI 3.50" 89mm 0.236 lbs/ft
PF528NC-12-250R 3/4" 19.1mm 1.220" 30.9mm 2250 PSI 4.50" 114mm 0.352 lbs/ft
PF528NC-16-250R 1" 25.4mm 1.620" 41.1mm 2000 PSI 6.00" 152mm 0.584 lbs/ft
