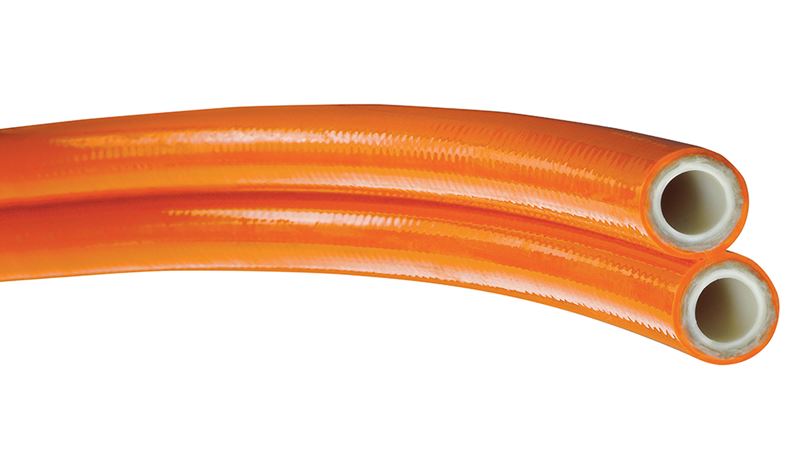

PF267NCTL-06-50BX Alfagomma Piranhaflex™ by Kuriyama | PF267NCTL Series | SAE 100R7 | Kink Resistant Twin Line Thermoplastic Hydraulic Hose | Non-Conductive | 3/8" ID | 0.651" OD | 2250 PSI | 50ft Length

PF267NCTL-06-50BX Alfagomma Piranhaflex™ by Kuriyama | PF267NCTL Series | SAE 100R7 | Kink Resistant Twin Line Thermoplastic Hydraulic Hose | Non-Conductive | 3/8" ID | 0.651" OD | 2250 PSI | 50ft Length

Sale price$699.26

Kuriyama of America Inc.
Alfagomma Piranhaflex | PF267NCTL Series | SAE 100R7 | Non-Conductive Kink Resistant Twin Line Thermoplastic Hydraulic Hose

Made in the USA.

Suitable for industrial equipment and vehicles (construction, agriculture, material handling) in applications down to -65°F.


Package Quantity: 50 Feet

Buy More, Save More!
Quantity Price Each
5–14 $657.30
15–29 $594.37
30+ $524.45
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
  • Piranhaflex
Series:
  • PF267NCTL Series
Color(s):
  • Orange
Application: Industrial equipment and vehicles (construction, agriculture, material handling, etc.).
Aerial equipment (PF267NCTL only).
Hydraulic oil and lubrication lines.		 SAE Rating: SAE 100R7 (ANSI A92.2)
Other Ratings: REACH (Non-Conductive ONLY)
SAE J517
ANSI 92.28 (3/16" - 1/2", For vehicle mounted aerial devices)		 Tube: Copolyester
Reinforcement: Braided high tensile strength fibers Cover: Pin pricked, abrasion resistant polyurethane, in conductive black (PF267TL), or non-conductive orange (PF267NCTL series) versions.
Service Temperature Range: -65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids
*Maximum 140°F (+60°C) for water and phosphate-ester based hydraulic fluids
Other Features:
  • Kink Resistant Technology - Proprietary design shown to exhibit 53% better resistance to kink initiation, and 16% less force to bend, versus competitive 100R7 hose in comparison testing.
  • Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces.
  • Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications.
  • Meets ANSI A92.2 (PF267NCTL Series Only) - Meets ANSI insulating requirement for aerial devices used in areas of high electricity. Tested to less than 50 microamperes leakage when subjected to 75,000 volts/ft. for 5 min.
  • Pin Pricked Cover (PF267TL Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering.
  • NOTE: Boxed 250' reels or boxed 50' coils. Max two pieces per reel, minimum pc. length 50'.
PF267TL Series | Conductive
Part Number
250ft Reel		 Part Number
50ft Reel		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF267TL-04-250R PF267TL-04-50BX 1/4" 6.4mm 0.496" 12.6mm 2750 PSI 1.50" 38mm 0.14 lbs/ft
PF267TL-06-250R PF267TL-06-50BX 3/8" 9.7mm 0.651" 16.5mm 2250 PSI 2.00" 51mm 0.24 lbs/ft
PF267TL-08-250R PF267TL-08-50BX 1/2" 13.1mm 0.834" 21.2mm 2000 PSI 3.00" 76mm 0.34 lbs/ft
PF267NCTL Series | Non-Conductive
Part Number
250ft Reel		 Part Number
50ft Reel		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF267NCTL-04-250R PF267NCTL-04-50BX 1/4" 6.4mm 0.496" 12.6mm 2750 PSI 1.50" 38mm 0.14 lbs/ft
PF267NCTL-06-250R PF267NCTL-06-50BX 3/8" 9.7mm 0.651" 16.5mm 2250 PSI 2.00" 51mm 0.24 lbs/ft
PF267NCTL-08-250R PF267NCTL-08-50BX 1/2" 13.1mm 0.834" 21.2mm 2000 PSI 3.00" 76mm 0.34 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
