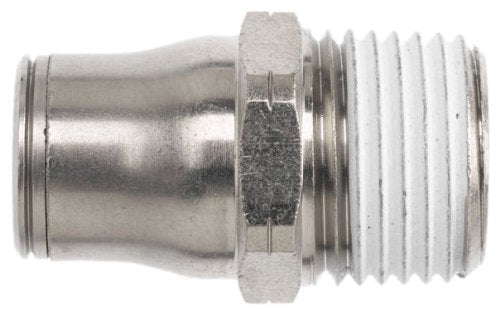

PCNB2404-04-02 by Brennan Inc. | -04 Tube x -02 Male NPT Connector | Straight | Nickel Plated Brass
Minimum Order Quantity: 5 Units
Brennan Inc.
Push to Connect: PCNB2404 - Tube x Male NPT Connector Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $12.81 |
| 40–79 | $11.59 |
| 80+ | $10.22 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | OD | C NPT | E | F1 | F2 | H | K | Scale OZ |
| PCNB2404-04-02 | Nickel Plated Brass | 1/4" | 1/8" | 0.30" | 13mm | 4mm | 0.67" | 0.55" | 0.42" |
| PCNB2404-04-04 | Nickel Plated Brass | 1/4" | 1/4" | 0.43" | 14mm | 4mm | 0.67" | 0.59" | 0.62" |
| PCNB2404-04-06 | Nickel Plated Brass | 1/4" | 3/8" | 0.45" | 18mm | 5mm | 0.67" | 0.77" | 1.00" |
| PCNB2404-06-04 | Nickel Plated Brass | 3/8" | 1/4" | 0.43" | 18mm | 7mm | 0.95" | 0.77" | 1.04" |
| PCNB2404-06-06 | Nickel Plated Brass | 3/8" | 3/8" | 0.45" | 18mm | 8mm | 0.91" | 0.77" | 1.16" |
| PCNB2404-08-04 | Nickel Plated Brass | 1/2" | 1/4" | 0.43" | 22mm | 7mm | 0.95" | 0.94" | 1.42" |
| PCNB2404-08-08 | Nickel Plated Brass | 1/2" | 1/2" | 0.59" | 22mm | 10mm | 0.95" | 0.94" | 1.77" |
