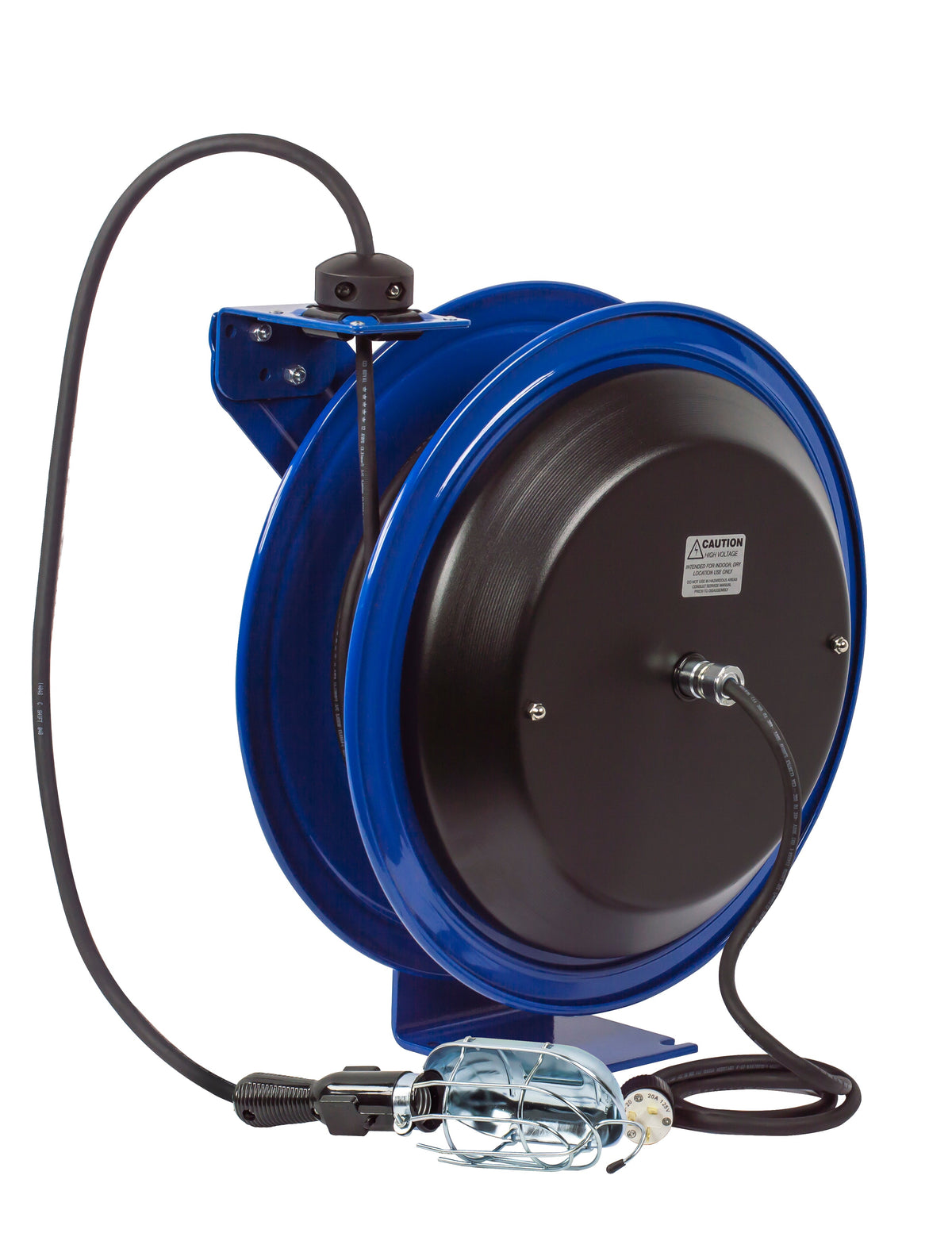

PC19-7516-E by Coxreels | PC Series | Spring Driven Power Cord Reel with Incandescent Cage Light | 16/3 SJTO Cord, 13A, 115V | Steel | 75ft Cord Included
Buy more, save moreDiscounts applied in cart/checkout.
Spring driven cord reel
Coxreels PC Series Spring Driven Cord Reels
Steel single-pedestal spring driven cord reels for electric cord. Made in the U.S.A.
1
What is this product used for?
- Electric Cord
2
What are the key specifications?
Construction
Steel, single-pedestal
Bearings
1" Permanently Lubricated Precision Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Ceiling, Bench and Vehicles
Ø0.5" mounting holes
3
What are the main product features?
- Component Cover — External, easily accessible, heavy gauge CPC™ powder coated steel components cover for fast and simple slip ring routine maintenance. No need to remove the reel from its mount.
- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" Steel Base — Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
- Multi-Position Guide Arm — Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
4
Which models are available?
| Part # | Cord | Type | Length | Outlet | Amps | Reel W × H × L (in) |
|---|---|---|---|---|---|---|
| PC13-3512-A | 12/3 | SJO | 35 ft | Single Industrial Receptacle | 20 | 8.5 × 14.875 × 13.5 |
| PC13-3512-B | 12/3 | SJO | 35 ft | Quad Industrial Receptacle | 20 | 8.5 × 14.875 × 13.5 |
| PC13-3512-F | 16/3 | SJO | 35 ft | Duplex Industrial Receptacle | 20 | 8.5 × 14.875 × 13.5 |
| PC13-3516-A | 16/3 | SJO | 35 ft | Single Industrial Receptacle | 13 | 8.5 × 14.875 × 13.5 |
| PC13-3516-E | 16/3 | SJTO | 35 ft | — | 13 | 8.5 × 14.875 × 13.5 |
| PC13-3516-F | 16/3 | SJO | 35 ft | Duplex Industrial Receptacle | 13 | 8.5 × 14.875 × 13.5 |
| PC13-5012-A | 12/3 | SJO | 50 ft | Single Industrial Receptacle | 20 | 8.5 × 14.875 × 13.5 |
| PC13-5012-B | 12/3 | SJO | 50 ft | Quad Industrial Receptacle | 20 | 8.5 × 14.875 × 13.5 |
| PC13-5012-F | 12/3 | SJO | 50 ft | Duplex Industrial Receptacle | 20 | 8.5 × 14.875 × 13.5 |
| PC13-5012-X | 12/3 | SJO | 50 ft | — | 20 | 8.5 × 14.875 × 13.5 |
| PC13-5016-A | 16/3 | SJO | 50 ft | Single Industrial Receptacle | 13 | 8.5 × 14.875 × 13 |
| PC13-5016-E | 16/3 | SJTO | 50 ft | — | 13 | 8.5 × 14.875 × 13.5 |
| PC13-5016-F | 16/3 | SJO | 50 ft | Duplex Industrial Receptacle | 13 | 8.5 × 14.875 × 13.5 |
| PC13-5016-H | 16/3 | SJTO | 50 ft | — | 13 | 8.5 × 14.875 × 13.5 |
| PC13-5016-K | 16/3 | SJTO | 50 ft | — | 13 | 8.5 × 14.875 × 13.5 |
| PC13-5016-M | 16/3 | SJTO | 50 ft | — | 13 | 8.5 × 14.875 × 13.5 |
| PC13L-5012 | 12/3 | SJO | 50 ft | — | 25 | 8.5 × 14.875 × 13.5 |
| PC13L-5016 | 16/3 | SJO | 50 ft | — | 25 | 8.5 × 14.875 × 13.5 |
| PC17-3510-X | 10/3 | SO | 50 ft | — | 30 | 11 × 18.625 × 17 |
| PC17-5010-X | 10/3 | SO | 50 ft | — | 30 | 11 × 18.625 × 17 |
| PC17L-5010 | 10/3 | — | 50 ft | — | 35 | 11 × 18.625 × 17 |
| PC19-7512-A | 12/3 | SJO | 75 ft | Single Industrial Receptacle | 20 | 10.125 × 21 × 19.5 |
| PC19-7512-B | 12/3 | SJO | 75 ft | Quad Industrial Receptacle | 20 | 10.125 × 21 × 19.5 |
| PC19-7512-F | 12/3 | SJO | 75 ft | Duplex Industrial Receptacle | 20 | 10.125 × 21 × 19.5 |
| PC19-7512-X | 12/3 | SJO | 75 ft | — | 20 | 10.125 × 21 × 19.5 |
| PC19-7516-A | 16/3 | SJO | 75 ft | Single Industrial Receptacle | 13 | 10.125 × 21 × 19.5 |
| PC19-7516-E | 16/3 | SJTO | 75 ft | — | 13 | 10.125 × 21 × 19.5 |
| PC19-7516-F | 16/3 | SJO | 75 ft | Duplex Industrial Receptacle | 13 | 10.125 × 21 × 19.5 |
| PC19-7516-X | 16/3 | SJO | 75 ft | — | 13 | 10.125 × 21 × 19.5 |
| PC19L-7512 | 12/3 | SJO | 75 ft | — | 25 | 10.125 × 21 × 19.5 |
| PC19L-7516 | 16/3 | SJO | 75 ft | — | 25 | 10.125 × 21 × 19.5 |
| PC24-0012-A | 12/3 | SJO | 100 ft | Single Industrial Receptacle | 20 | 10.25 × 25.5 × 24 |
| PC24-0012-B | 12/3 | SJO | 100 ft | Quad Industrial Receptacle | 20 | 10.25 × 25.5 × 24 |
| PC24-0012-F | 12/3 | SJO | 100 ft | Duplex Industrial Receptacle | 20 | 10.25 × 25.5 × 24 |
| PC24-0012-X | 12/3 | SJO | 100 ft | — | 20 | 10.25 × 25.5 × 24 |
| PC24-0016-A | 16/3 | SJO | 100 ft | Single Industrial Receptacle | 13 | 10.25 × 25.5 × 24 |
| PC24-0016-E | 16/3 | SJTO | 100 ft | — | 13 | 10.25 × 25.5 × 24 |
| PC24-0016-F | 16/3 | SJO | 100 ft | Duplex Industrial Receptacle | 13 | 10.25 × 25.5 × 24 |
| PC24-0016-X | 16/3 | SJO | 100 ft | — | 13 | 10.25 × 25.5 × 24 |
| PC24L-0012 | 12/3 | SJO | 100 ft | — | 25 | 10.25 × 25.5 × 24 |
| PC24L-0016 | 16/3 | SJO | 100 ft | — | 25 | 10.25 × 25.5 × 24 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Mounting brackets — fit every model | ||
| 15724 | EZ-Up "I" or "H" Beam Adapter | |
| 15723 | EZ-Up Bracket | |
| MR-1 | Overhead Mounting Bracket | |
| 15720 | Swing Bracket | |
| 15721 | Swivel Bracket | |
| Hose end | ||
| 131 | Hose/cord stop | Cord 12/3, plus PC13-3512-F |
| 131-1 | Hose/cord stop | Cord 16/3 except PC13-3512-F |
| 131-3 | Hose/cord stop | Drum width 3.75" |
| 237-1 | Spiral hose/cord guard | Cord 10/3, 12/3, plus PC13-3512-F |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BZX is -GZX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BZX | Less swivel |
| Other | |
| -BXC | Constant Tension |
7
Where can I find product documents?
PC Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing — PC13
Numbered parts breakdown with replacement part numbers for PC13 reels.
Exploded Parts Drawing — PC17
Numbered parts breakdown with replacement part numbers for PC17 and PC17L reels.
Exploded Parts Drawing — PC19
Numbered parts breakdown with replacement part numbers for PC19 and PC19L reels.
Exploded Parts Drawing — PC24
Numbered parts breakdown with replacement part numbers for PC24 and PC24L reels.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
⚠ WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Chromium, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Contact Us
Need a Custom Product?
Please provide as much detail you can on your use case and one of our agents will respond ASAP.
